Component Location

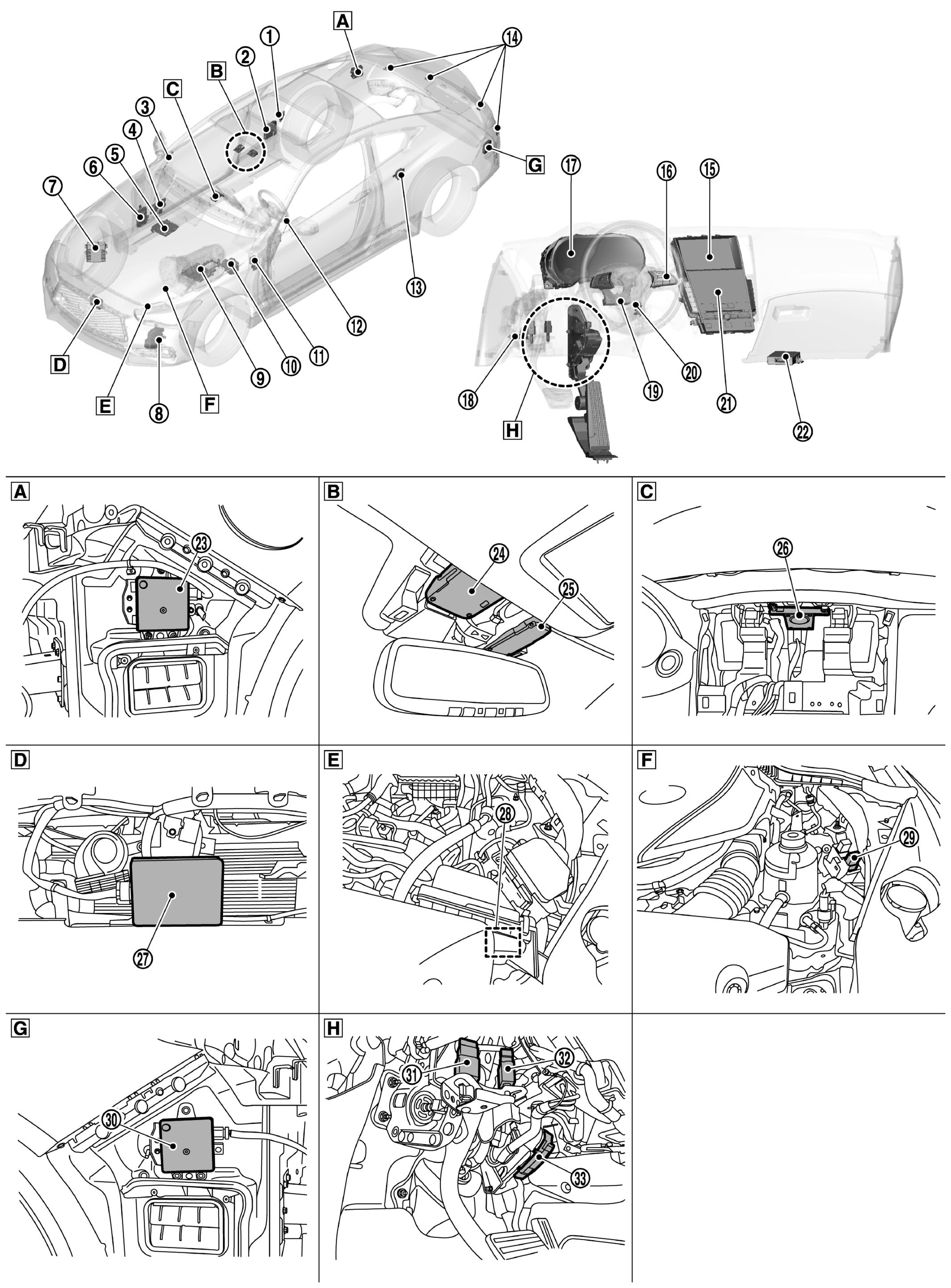

GNSJSOIA2547ZZ-547Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Rear Bumper Removed Condition (LH) WZ-B Front Inside Mirror WZ-C Instrument Panel (Center)
WZ-D Front Bumper (Center) WZ-E Engine Room (LH) (VR30DDTT) WZ-F Engine Room (LH) (2.0L Turbo Gasoline Engine)
WZ-G Rear Bumper Removed Condition (RH) WZ-H Upper side of brake pedal
No. Component Description
WHITE-1 ADAS Control Unit 2
  • ADAS Control Unit 2 calculates a target distance between vehicles and a target speed, based on signals received from each sensor and switch to transmit a brake fluid pressure control signal to ABS Actuator And Electric Unit (Control Unit) via CAN Communication (via ADAS Control Unit)
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-2 Around View Monitor Control Unit
  • Around View Monitor Control Unit receives BCI warning signal to indicate yellow/red frame on the upper display.
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-3 Blind Spot Warning/Blind Spot Intervention indicator RH Refer to BLIND SPOT WARNING/BLIND SPOT INTERVENTION INDICATOR LH/RH
WHITE-4 EMCM
  • EMCM transmits the brake pedal position switch signal and stop lamp switch signal to ADAS Control Unit via CAN Communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-5 ECM (2.0L turbo gasoline engine)
  • ECM transmits the accelerator pedal position signal, etc. to ADAS Control Unit via CAN Communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-6 BCM
  • Transmits the turn indicator signal and position light request signal to ADAS Control Unit via CAN Communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-7 ECM (VR30DDTT)
  • ECM transmits the accelerator pedal position signal, brake pedal position switch signal, stop lamp switch signal, ICC Steering Switch signal, etc. to ADAS Control Unit via CAN Communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-8 Steeling angle main control module
  • Direct Adaptive Steering system is controlled by three control modules of steering force control module, steering angle main control module and steering angle sub control module.
  • Receives steering reaction force request signal and controls the steering reaction force.
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-9 TCM
  • TCM transmits the signal related to A/T control to ADAS Control Unit.
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-10 ABS Actuator And Electric Unit (Control Unit)
  • ABS Actuator And Electric Unit (Control Unit) transmits the vehicle speed signal (wheel speed), stop lamp signal and VDC/TCS/ABS system operation condition to ADAS Control Unit via CAN Communication
  • ABS Actuator And Electric Unit (Control Unit) controls the brake, based on a brake fluid pressure control signal received from ADAS Control Unit via CAN Communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-11 Chassis Control Module
  • Chassis Control Module transmits the drive mode signal to ADAS Control Unit via CAN Communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-12 Blind Spot Warning/Blind Spot Intervention indicator LH Refer to BLIND SPOT WARNING/BLIND SPOT INTERVENTION INDICATOR LH/RH
WHITE-13 ADAS Control Unit
  • ADAS Control Unit calculates a target distance between vehicles and a target speed, based on signals received from each sensor and switch to transmit a brake fluid pressure control signal to ABS Actuator And Electric Unit (Control Unit) via CAN Communication
  • ADAS Control Unit transmits the buzzer output signal to the Combination Meter via CAN Communication
  • ADAS Control Unit transmits an accelerator pedal feedback force control signal to the accelerator pedal actuator via ITS communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-14 Sonar sensor (rear)
  • When a distance from an obstacle is detected, a distance signal is transmitted to the sonar Control Unit.
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-15 Display Control Unit
  • Display Control Unit transmits the system selection signal to ADAS Control Unit via CAN Communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-16 Dynamic Driver Assistance Switch
(On the ICC Steering Switch)
  • ECM receives an ICC Steering Switch (Dynamic Driver Assistance Switch) signal and transmits the signal to ADAS Control Unit via CAN Communication (VR30DDTT)
  • ADAS Control Unit receives an ICC Steering Switch (Dynamic Driver Assistance Switch) signal (2.0 TURBO GASOLINE ENGINE)
WHITE-17 Combination meter Performs the following operations using the signals received from the ADAS Control Unit via the CAN Communication
  • Displays the system operation status using the meter display signal
  • Illuminates the system FEB warning lamp using the FEB warning lamp signal
  • Operates the buzzer using the buzzer output signal
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-18 Buzzer
  • The warning buzzer sounds with the signal from the sonar Control Unit.
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-19 Steering Angle Sensor
  • Measures the rotation amount, rotation speed, and rotation direction of steering wheel, and then transmits them to ADAS Control Unit via CAN Communication
  • Refer to COMPONENT LOCATION for detailed installation location.
WHITE-20 Steering Vibration Motor Refer to STEERING VIBRATION MOTOR
CIRCLE WHITE-21 Integral switch
  • Change each system setting by switch operation
  • Refer to COMPONENT LOCATION for detailed installation location.
CIRCLE WHITE-22 Sonar Control Unit
  • The warning buzzer outputs by inputting the sensor signal from sonar sensors.
  • Sensor signal that corresponds to the detected distance to an obstacle is transmitted to Around View Monitor Control Unit via CAN Communication.
  • Refer to COMPONENT LOCATION for detailed installation location.
CIRCLE WHITE-23 Side radar RH Refer to SIDE RADAR LH/RH
CIRCLE WHITE-24 Lane camera unit 2 Refer to LANE CAMERA UNIT 2
CIRCLE WHITE-25 Lane camera unit Refer to LANE CAMERA UNIT
CIRCLE WHITE-26 Driver assistance buzzer Refer to DRIVER ASSISTANCE BUZZER
CIRCLE WHITE-27 ICC Sensor Refer to ICC SENSOR
CIRCLE WHITE-28 ICC brake hold relay (VR30DDTT) Refer to ICC BRAKE HOLD RELAY
CIRCLE WHITE-29 ICC brake hold relay (2.0 TURBO GASOLINE ENGINE)
CIRCLE WHITE-30 Side radar LH Refer to SIDE RADAR LH/RH
CIRCLE WHITE-31 Stop lamp switch Refer to BRAKE PEDAL POSITION SWITCH / STOP LAMP SWITCH
CIRCLE WHITE-32 Brake pedal position switch
CIRCLE WHITE-33 Accelerator pedal actuator Refer to ACCELERATOR PEDAL ACTUATOR
