Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Infiniti FX50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front propeller shaft. Refer to "VK50VE: EXPLODED VIEW ".
  2. Remove exhaust mounting bracket and three way catalyst (right bank). Refer to "EXPLODED VIEW ".
  3. Remove A/T air breather hose.
  4. Remove rear propeller shaft. Refer to "EXPLODED VIEW ".
  5. Remove control rod from A/T shift selector. Refer to "EXPLODED VIEW ".
  6. Support A/T assembly with a transmission jack.

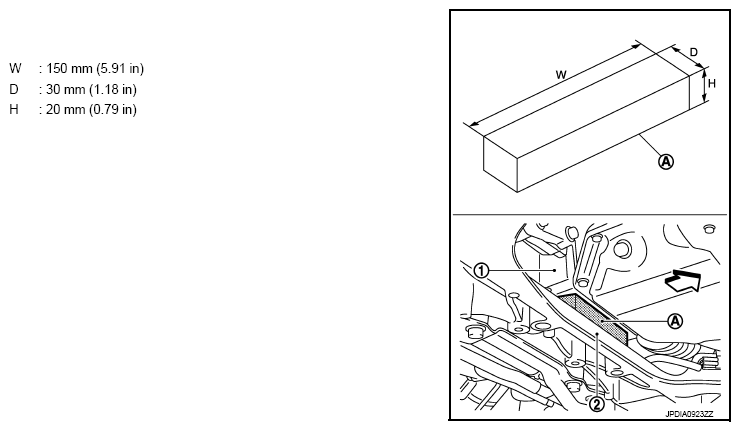

  7. Insert a wooden block (A) between oil pan (upper) (1) of engine and front suspension member (2).
    Fig 1: Inserting Wooden Block Between Oil Pan (Upper) Of Engine And Front Suspension Member
    G09002240Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Always insert a wooden block between oil pan (upper) of engine and front suspension member when removing air breather vent. (Because VVEL control shaft position sensor may be damaged by the interference between VVEL control shaft position sensor and dash panel if the operation is performed without the wooden block inserted.)
    • After inserting wooden block, check it does not fall out easily.
  8. Remove rear engine mounting member with a power tool. Refer to "EXPLODED VIEW ".
  9. Remove bolt fixing A/T assembly to engine assembly with power tool.
  10. Remove air breather tube.
  11. Remove air breather hoses.
