Rear Propeller Shaft
>>
Exploded View
Exploded View

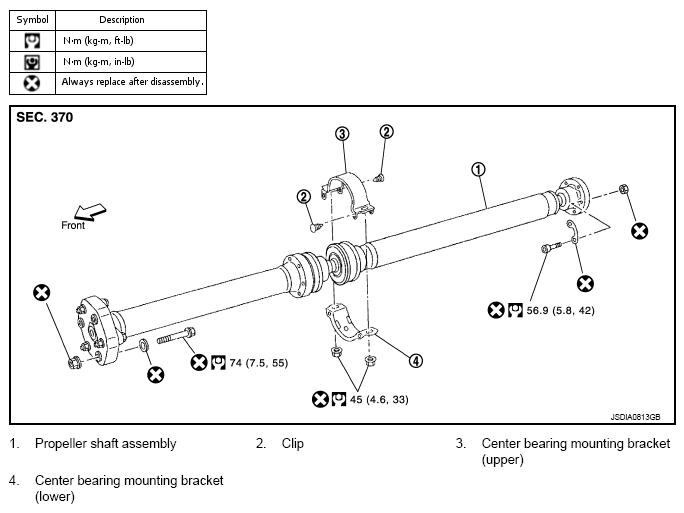

Fig 1: Exploded View Of Rear Propeller Shaft
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYMBOLS
" for symbols in the figure.
