VK50VE: Exploded View

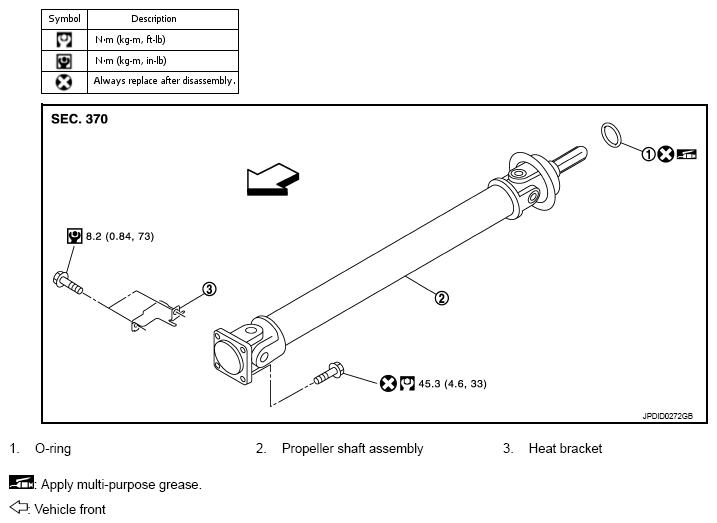

Fig 1: Exploded View Of Front Propeller Shaft With Torque Specifications

G09002710

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
