2WD : Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Drain ATF through drain plug.
  2. Remove exhaust front tube and center muffler with power tool. Refer to "EXPLODED VIEW ".
  3. Separate propeller shaft assembly. Refer to "EXPLODED VIEW ".
  4. Remove control rod. Refer to "EXPLODED VIEW ".
  5. Support A/T assembly with a transmission jack.
    CAUTION: When setting transmission jack, be careful not to allow it to collide against the drain plug.
  6. Remove rear engine mounting member with power tool. Refer to "2WD : EXPLODED VIEW ".
  7. Remove engine mounting insulator (rear). Refer to "2WD : EXPLODED VIEW ".
  8. Remove tightening bolts for rear extension assembly and transmission case.

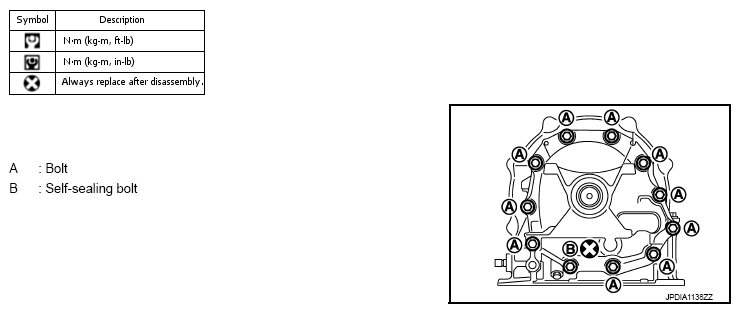

    Fig 1: Locating Rear Extension Assembly And Transmission Case Tightening Bolts
    G07173920Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Tap rear extension assembly with a soft hammer (A).
    Fig 2: Tapping Rear Extension Assembly With Soft Hammer
    G07173921Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove rear extension assembly (with needle bearing) from transmission case.
    Fig 3: Removing Rear Extension Assembly From Transmission Case
    G07173922Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove bearing race (1) from output shaft (2).
    Fig 4: View Of Bearing Race And Output Shaft
    G07173923Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove output shaft (1) from transmission case by rotating left/right.
    Fig 5: Removing Output Shaft From Transmission Case
    G07173924Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove parking gear (1) from output shaft (2).
    Fig 6: Removing Parking Gear From Output Shaft
    G07173925Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove seal rings (1) from output shaft.
    Fig 7: View Of Seal Rings And Output Shaft
    G07173926Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove needle bearing (1) from rear extension.
    Fig 8: Locating Needle Bearing And Rear Extension
    G07173927Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove parking actuator support (1) from rear extension.
    Fig 9: Removing Parking Actuator Support From Rear Extension
    G07173928Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Remove parking pawl (with return spring) (1) and pawl shaft (2) from rear extension.
    Fig 10: Removing Parking Pawl And Pawl Shaft From Rear Extension
    G07173929Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Remove return spring (1) from parking pawl (2).
    Fig 11: View Of Return Spring And Parking Pawl
    G07173930Courtesy of NISSAN MOTOR CO., U.S.A.
