Exploded View

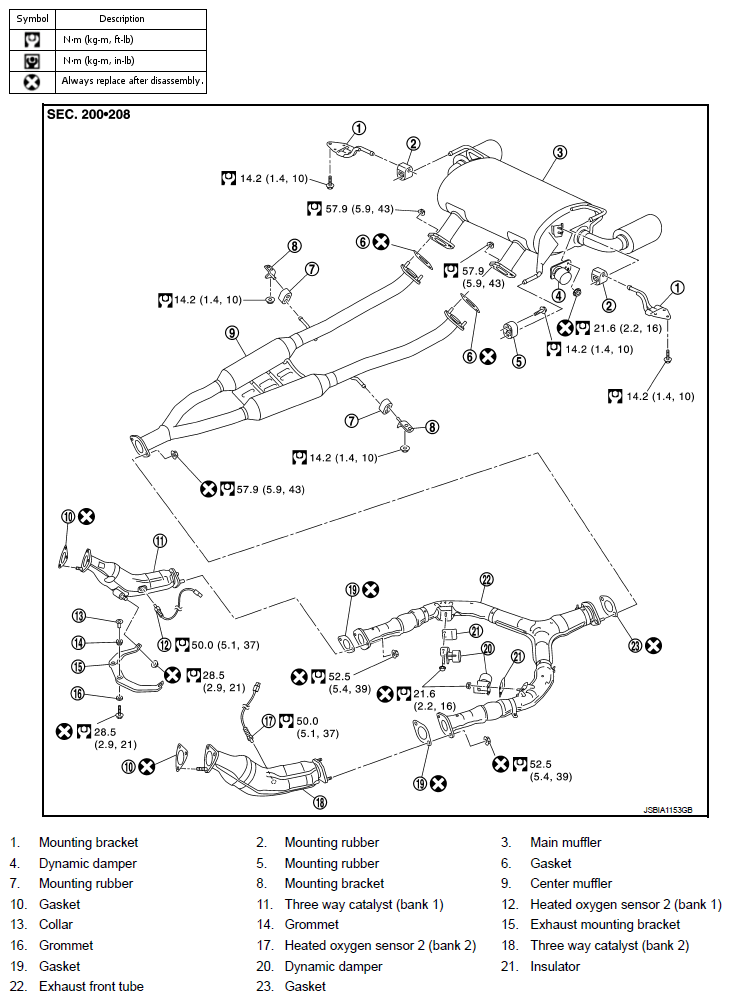

Fig 1: Exploded View Of Exhaust System With Torque Specifications

G07170527

Refer to "COMPONENTS " for symbols in the figure.
