Exploded View

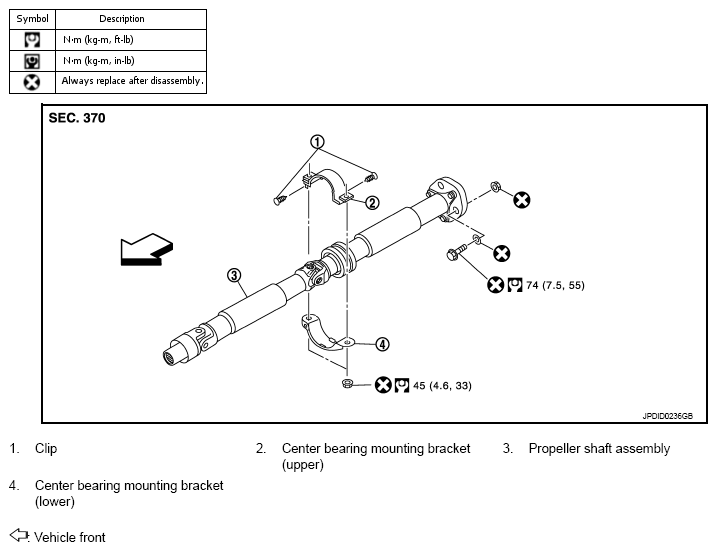

Fig 1: Exploded View Of Rear Propeller Shaft With Torque Specifications

G07170727

Refer to "COMPONENTS " for symbols in the figure.
