Removal and Installation

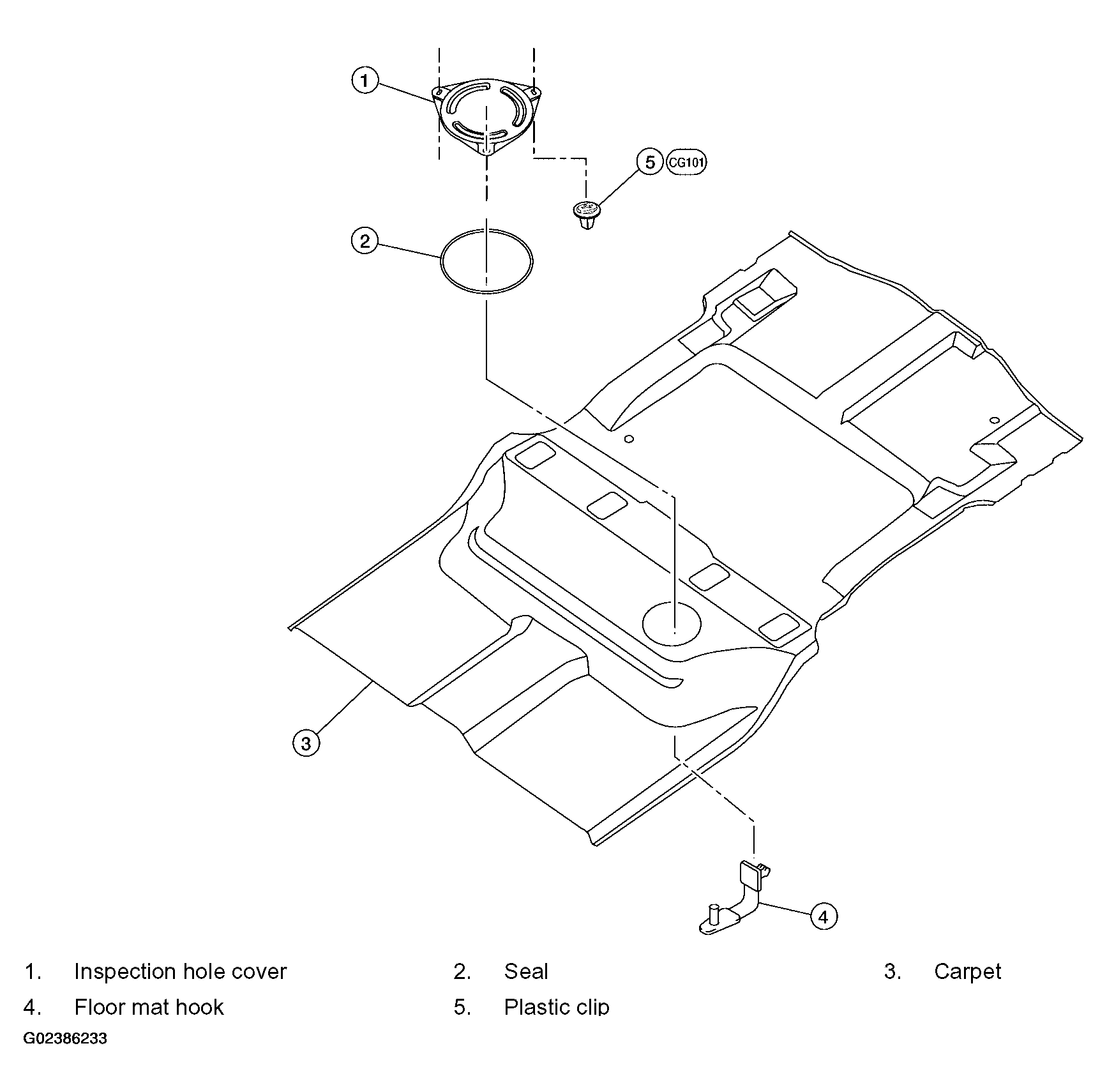

Fig 1: Exploded View Of Floor Trim

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove front seats. Refer to "FRONT SEAT ".
   • Remove subwoofer. Refer to "REMOVAL AND INSTALLATION OF SUBWOOFER ".
   • Remove navigation display control unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT ".
2. Remove second row seats. Refer to "SECOND ROW OUTBOARD " and "SECOND ROW CENTER ", if equipped.
3. Remove third row rear seat. Refer to "THIRD ROW ".
4. Remove lower seat belt anchors. Refer to "SEAT BELTS ".
5. Remove lower body side trim. Refer to "BODY SIDE TRIM ".
6. Remove luggage lower side finishers (left / right). Refer to "LUGGAGE FLOOR TRIM ".
7. Remove kicking plates. Refer to "BODY SIDE TRIM ".
8. Remove center console. Refer to "INSTRUMENT PANEL ASSEMBLY ".
9. Remove rear console, if equipped. Refer to "REAR CONSOLE ".
10. Remove rear lower finisher. Refer to "LUGGAGE FLOOR TRIM ".
11. Remove carpet.
12. Remove floor mat hooks from front carpet.

Installation is in the reverse order of removal.
