Rear Console

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

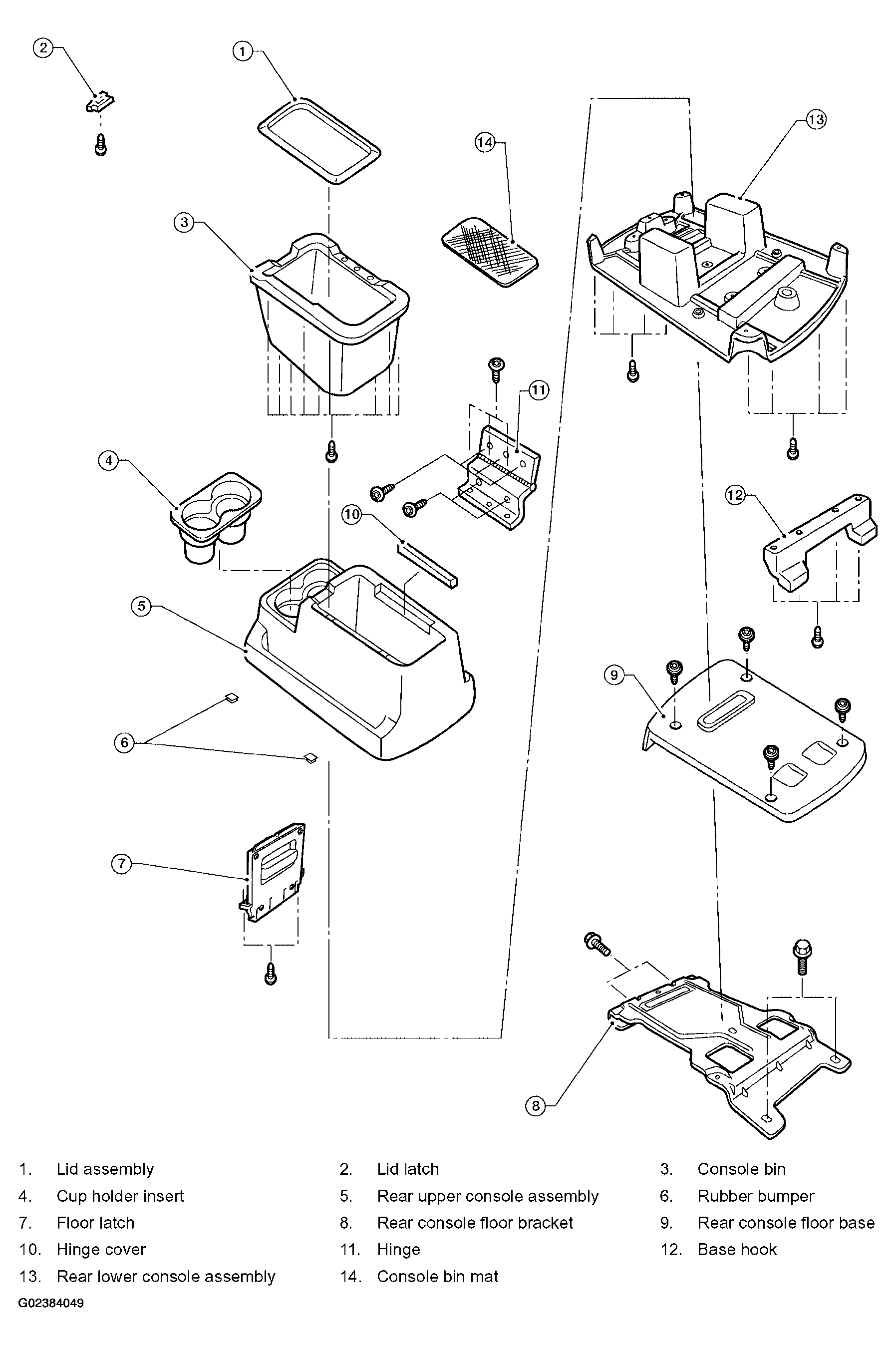

Fig 1: Exploded View Of Rear Console Components
G02384049Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove cup holder insert.
  2. Release latch and remove rear console assembly.
  3. Remove hinge cover.
  4. Remove screws from hinge assembly and remove console lid assembly.
    • Remove hinge from upper console assembly.
    • Remove latch from lid assembly.
  5. Remove screws and separate upper and lower console assemblies.
    • Remove floor latch from upper console assembly.
  6. Remove screws and remove bin from upper console assembly.
  7. Remove screws and remove floor base.
  8. Remove bolts and remove floor bracket.

Assembly is in the reverse order of disassembly.
