Removal and Installation of Subwoofer

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seat LH. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the subwoofer bolts.
  3. Disconnect the connector and remove the subwoofer.
  4. Installation is in the reverse order of removal.
    • Subwoofer mounting bolts: 3.5 N.m (0.36 kg-m, 31 in-lb)

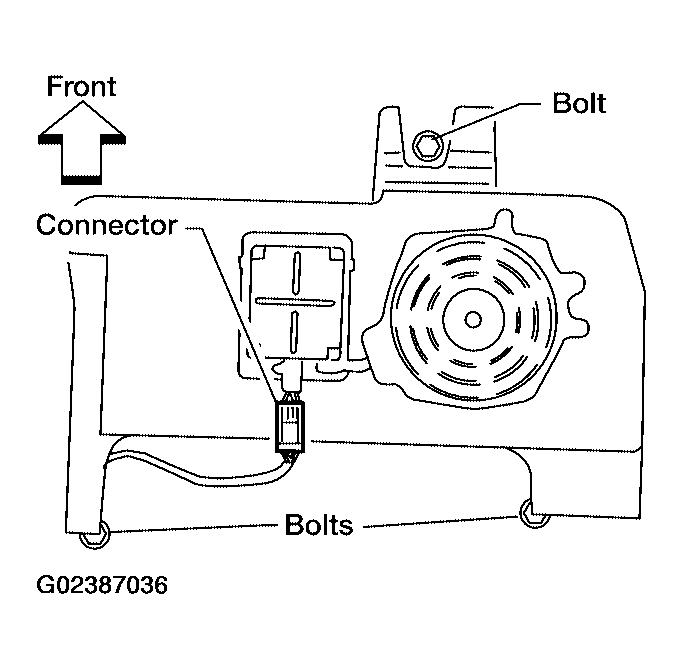

    Fig 1: Identifying Subwoofer Bolts And Connector
    G02387036Courtesy of NISSAN MOTOR CO., U.S.A.
