Removal And Installation: Installation
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
After completing installation, check for A/T fluid leakage and fluid level. Refer to
"CHANGING A/T FLUID
",
"CHECKING A/T FLUID
".

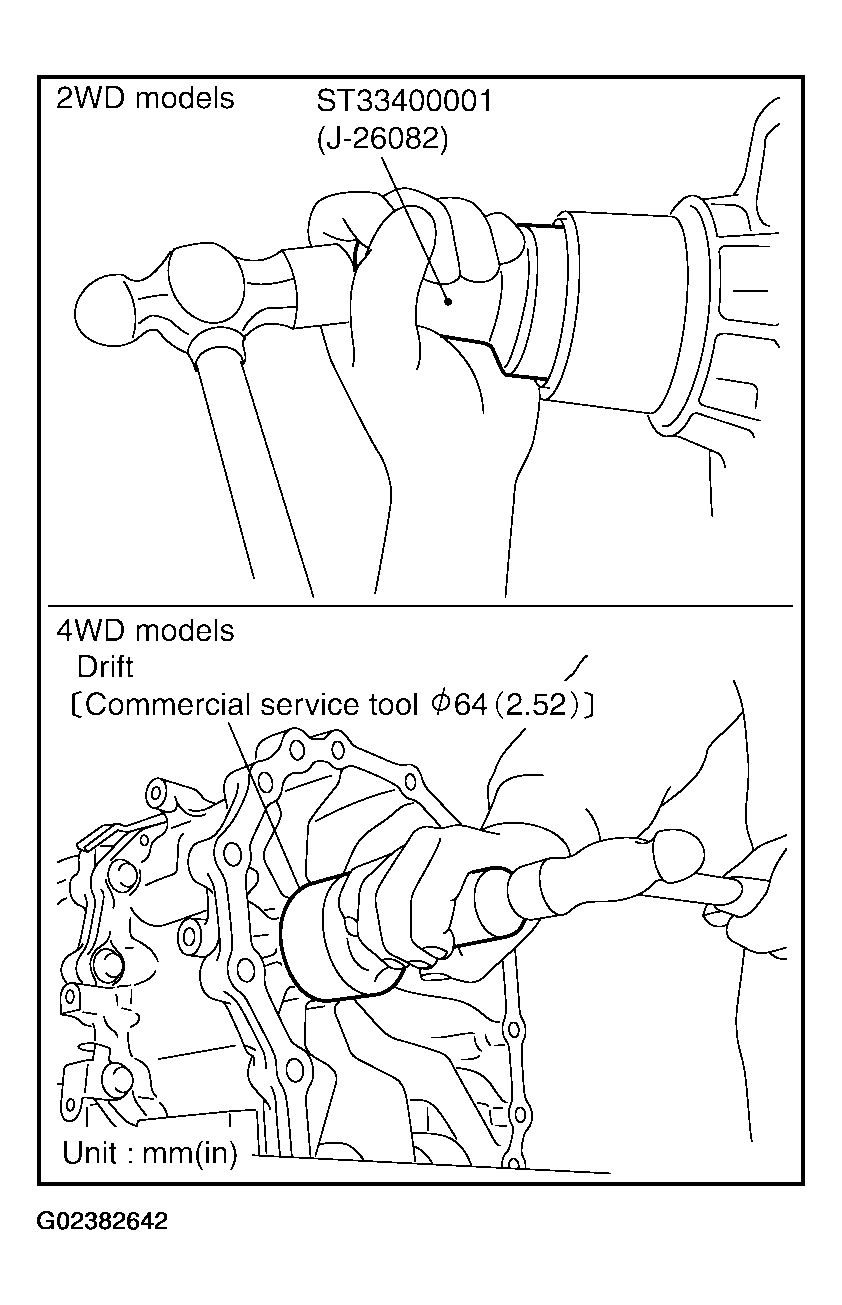

- Install new rear oil seal into the extension case (2WD models) or adapter case (4WD models) until it is flush with component face, using Tool or suitable drift.CAUTION:
- Apply ATF to rear oil seal.
- Do not reuse rear oil seal.
- Install transfer to transmission (4WD models). Refer to "INSTALLATION - TRANSFER ".
- Install rear propeller shaft. Refer to "INSTALLATION - REAR DRIVE SHAFT "
