Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal, paying attention to the following:
- Tighten the bolts to specification.

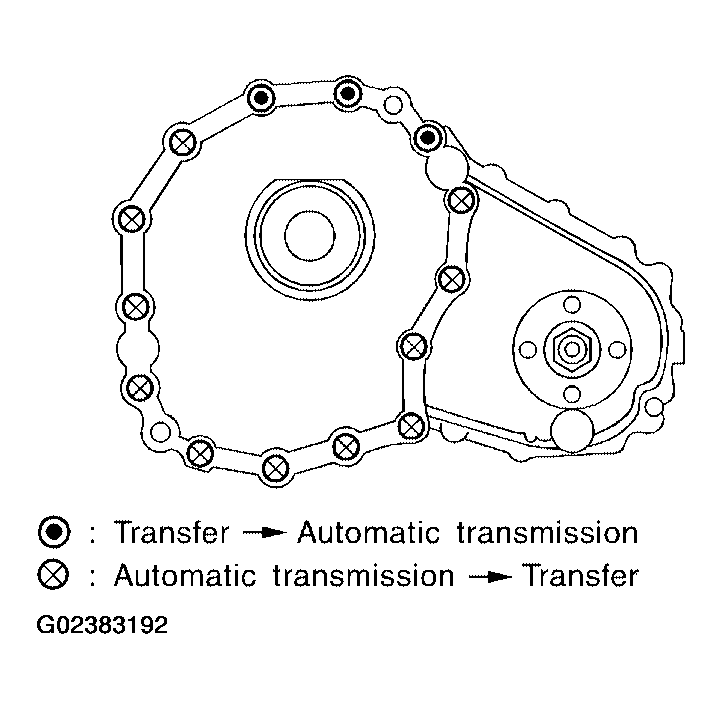

- Bolt length: 45 mm (1.77 in)
- Transfer bolt torque: 36 N.m (3.7 kg-m, 26 ft-lb)
- Fill the transfer with new fluid. Refer to "FILLING ".
- Check the transfer fluid. Refer to "FLUID LEAKAGE AND FLUID LEVEL ".
- Start the engine for one minute. Then stop the engine and recheck the transfer fluid. Refer to "FLUID LEAKAGE AND FLUID LEVEL ".
