Front Fender Replacement

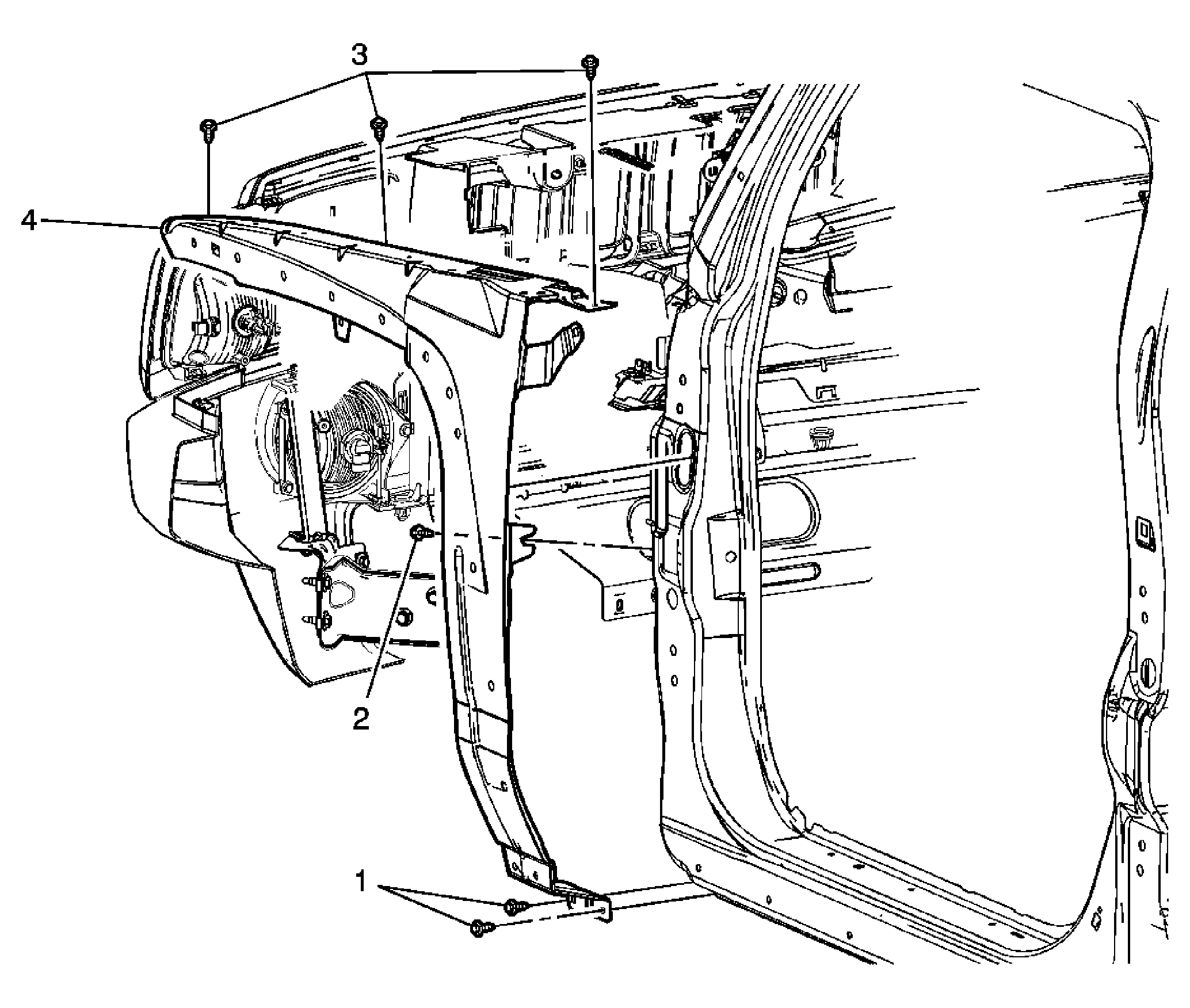

Fig 1: Fender Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse opening flare. Refer to Front Wheel Opening Flare Replacement (with BRM and RHD) or Front Wheel Opening Flare Replacement (Base) . Remove the front wheelhouse panel. Refer to Front Wheelhouse Liner Replacement . Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement (H3) . Remove air inlet grille panel. Refer to Non-Functional Air Inlet Grille Panel Replacement .
1	Front Fender Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Fender Bolt (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Front Fender Bolt (Qty: 3) Tighten: 10 N.m (89 lb in)
4	Front Fender Tip: On right side fender, remove the radio antenna. Refer to Radio Antenna Replacement .
