Front Wheel Opening Flare Replacement (Base)

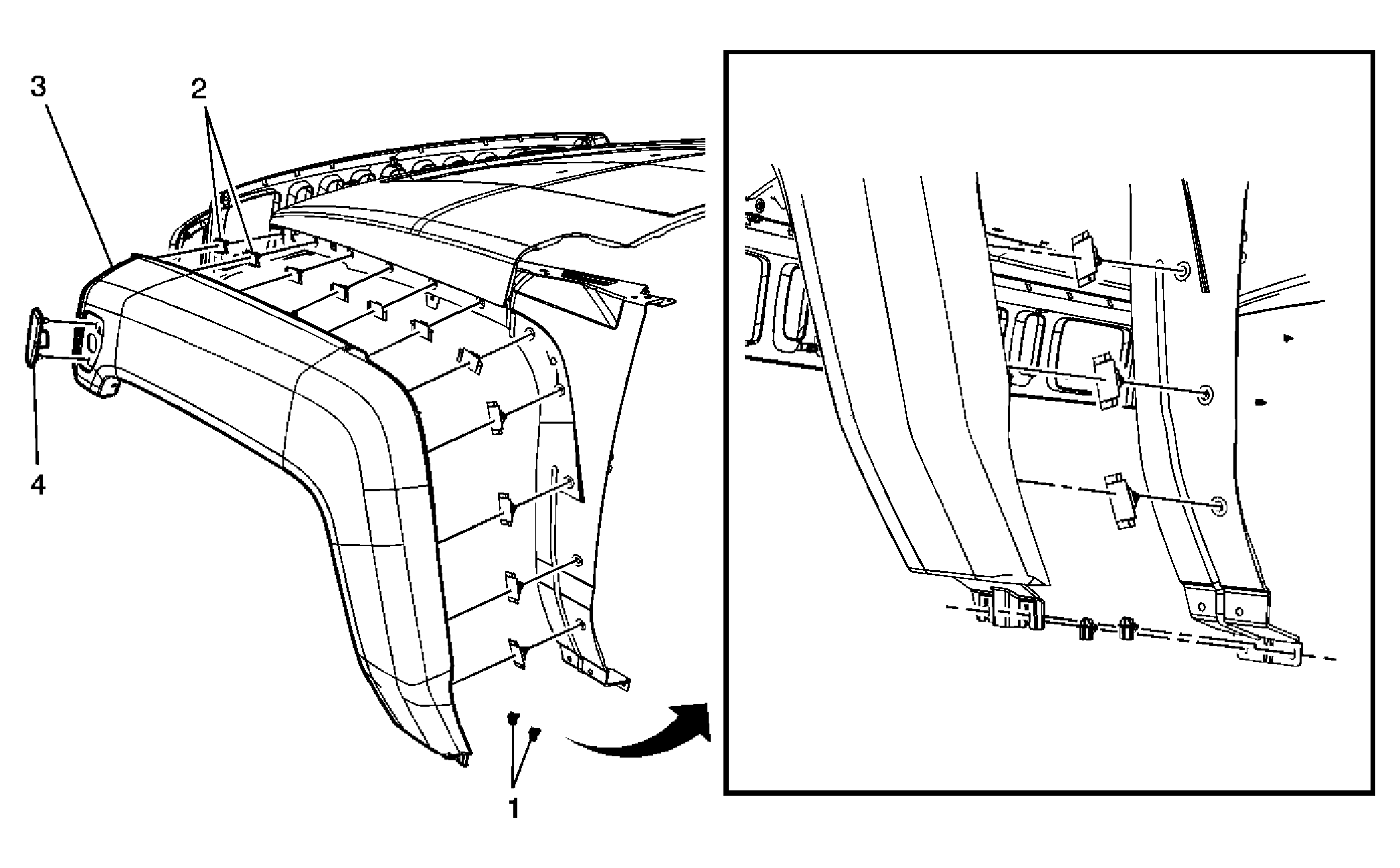

Fig 1: Wheel Opening Flare Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse panel. Refer to Front Wheelhouse Liner Replacement . Disconnect the front side marker lamp electrical connector from the marker lens housing.
1	Pencil Brace Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Lower Fender Flare Retainer (Qty: 2)
3	Front Wheel Housing Opening Flare Retainer (Qty: 11) Procedure Pull the flare away from the vehicle slightly, use small needle nose pliers to depress the tabs on the retainers. Pull front flare outward at the rear then rearward to release from under the edge of the front grille. Transfer the front marker lamp lens housing to the new front flare.
4	Front Wheel Housing Opening Flare Assembly
