Non-Functional Air Inlet Grille Panel Replacement

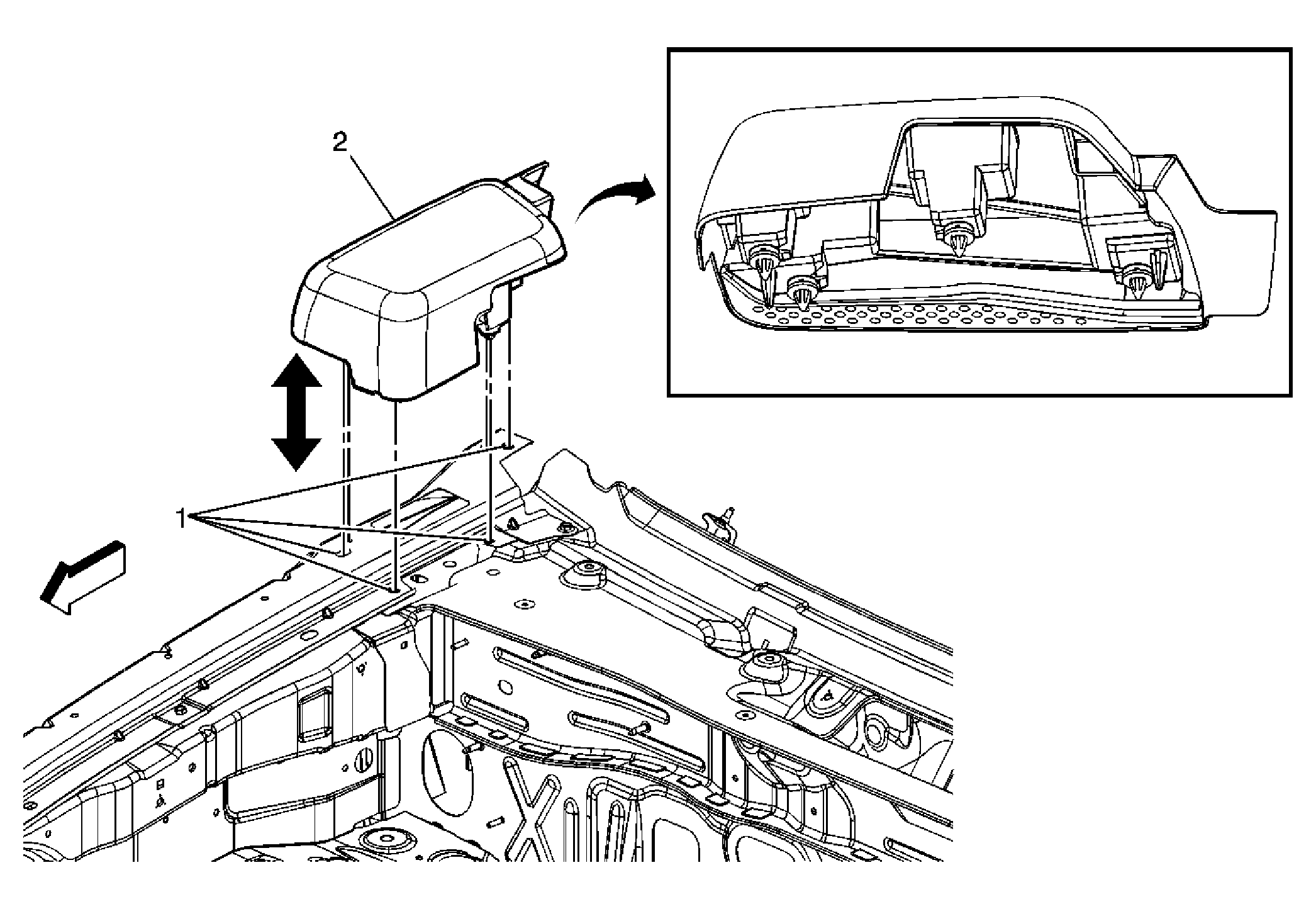

Fig 1: Air Inlet Grille Panel Replacement - Non Functional

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Retainers, Integral (Qty: 4) Tip:  Pull the non functional air inlet grille panel upward to release the 4 retainers from the fender.
2	Grille, Non Functional Air Inlet
