Grille Replacement

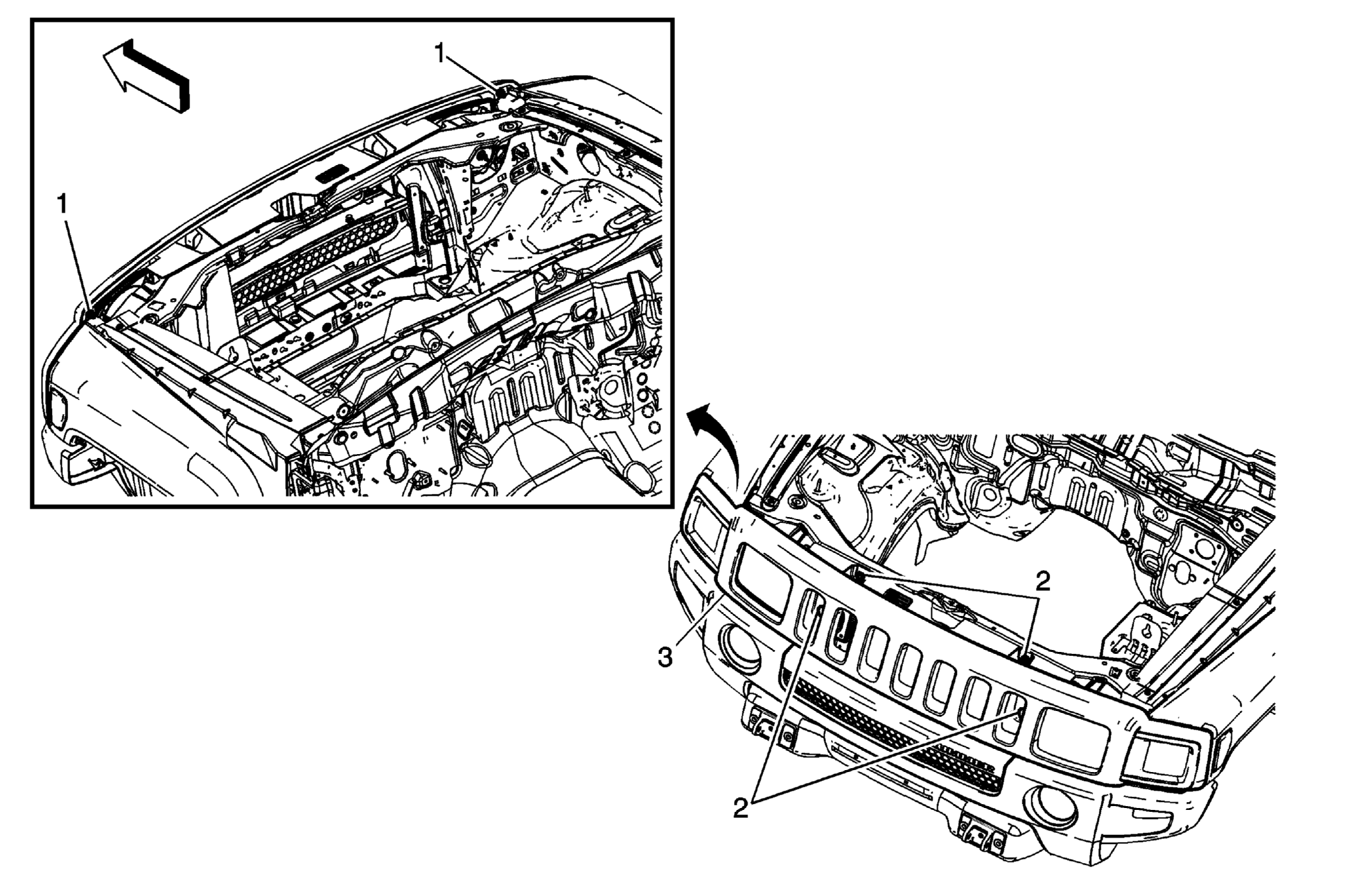

Fig 1: Identifying Grille

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the brush/grille guard (if equipped). Refer to Grille Guard/Brush Guard Replacement (Base) or Grille Guard/Brush Guard Replacement (H3X) .
1	Radiator Grille Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:: 7 N.m (62 lb in)
2	Radiator Grille Screws (Qty: 4) Tighten:: 7 N.m (62 lb in)
3	Radiator Grille Tip: Pull outward evenly to release the retainer tabs from the retention clips around the headlamps. Pull outward evenly to release the retainer tabs from the retention clips at the center upper and lower grille area. Transfer the radiator grille support assembly as needed.
