Grille Guard/Brush Guard Replacement (Base)

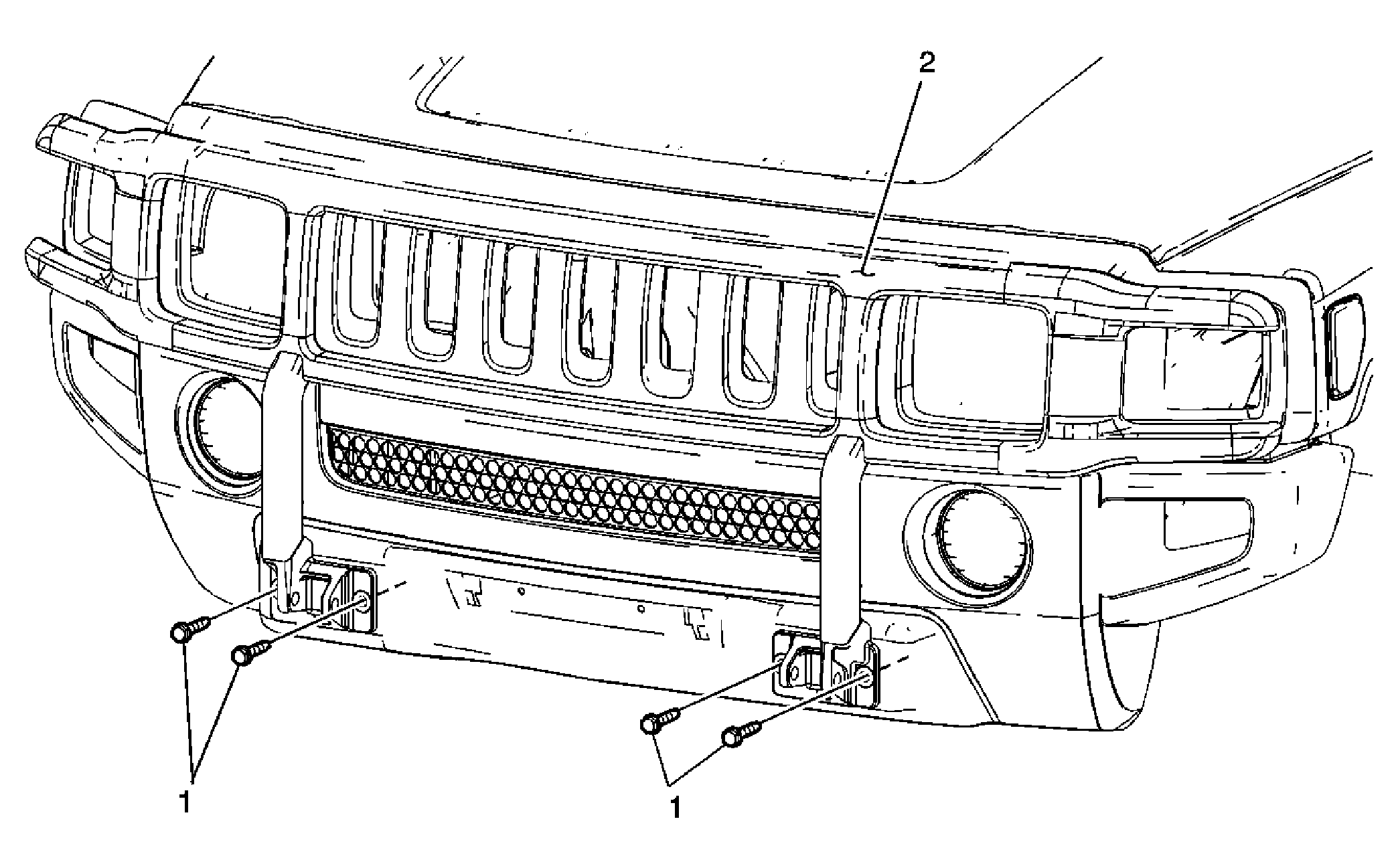

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front tow hooks. Refer to Front Tow Hook Replacement . |
|
| 1 | Bar Bolts, Front Bumper Impact (Qty: 4)
CAUTION:
Refer to Fastener Caution
. Tip: Support the radiator grille guard prior to removing the bolts. Tighten: 50 N.m (37 lb ft) |
| 2 | Guard Assembly, Radiator Grille |
