Grille Guard/Brush Guard Replacement (H3X)

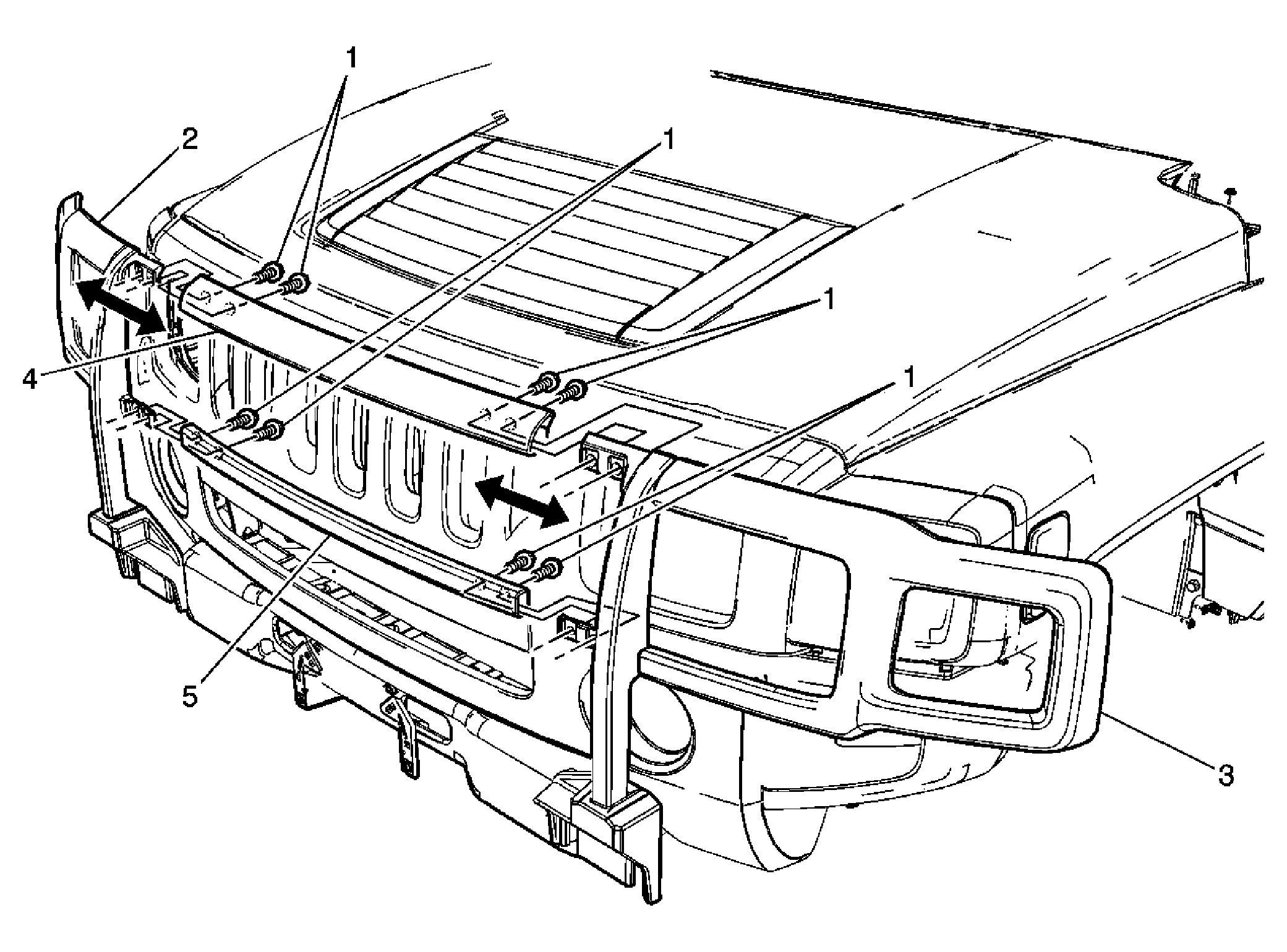

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front tow hooks. Refer to Front Tow Hook Replacement . Tip: Support the radiator grille/brush guard prior to removing the impact bar bolts. |
|
| 1 | Radiator Grille Guard Assembly Bolts (Qty: 8)
CAUTION:
Refer to Fastener Caution
.
Tighten: Tighten the bolts to 10 N.m (89 lb in) |
| 2 | Radiator Grille Outer (RH) Guard Tip: Slide the outer grille into the upper and lower grille guard prior to installing the bolts. |
| 3 | Radiator Grille Outer (LH) Guard Tip: Slide the outer grille into the upper and lower grille guard prior to installing the bolts. |
| 4 | Radiator Grille Upper Guard |
| 5 | Radiator Grille Lower Guard |
