Rear Seat Replacement (AL4)

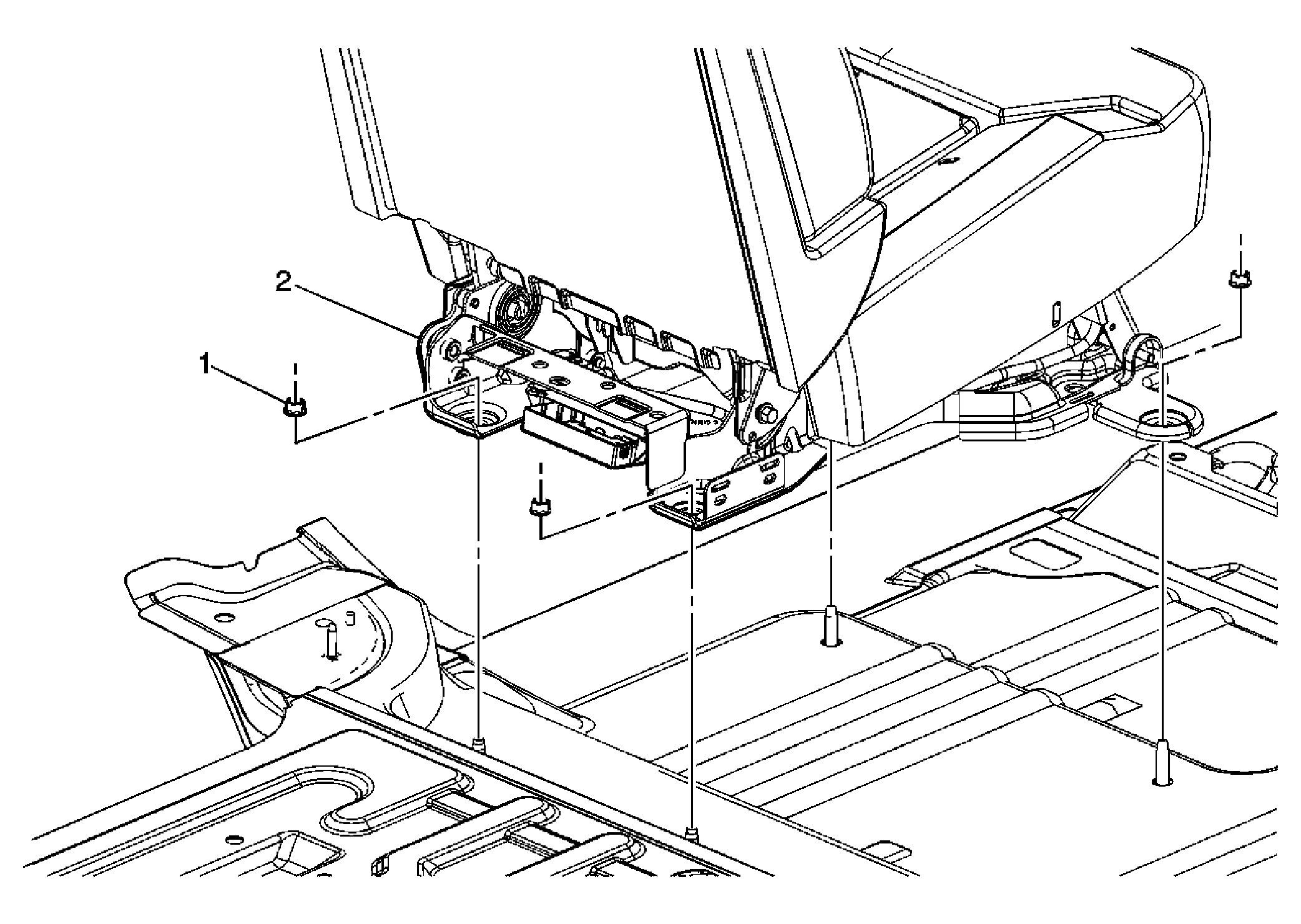

Fig 1: Identifying Rear Seat (AL4)

GM2127245

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the rear seat front riser finish cover. Refer to Rear Seat Front Riser Finish Cover Replacement (AL4) .
Remove the rear seat back cushion filler panel. Refer to Rear Seat Back Cushion Filler Panel Replacement (AL4) .

1

Rear Seat Assembly Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 55 N.m (41b ft)

2

Rear Seat Assembly
Tip:

Disconnect the electrical connector.
With the help of an assistant, remove the seat from the vehicle.
