Rear Seat Back Cushion Filler Panel Replacement (AL4)

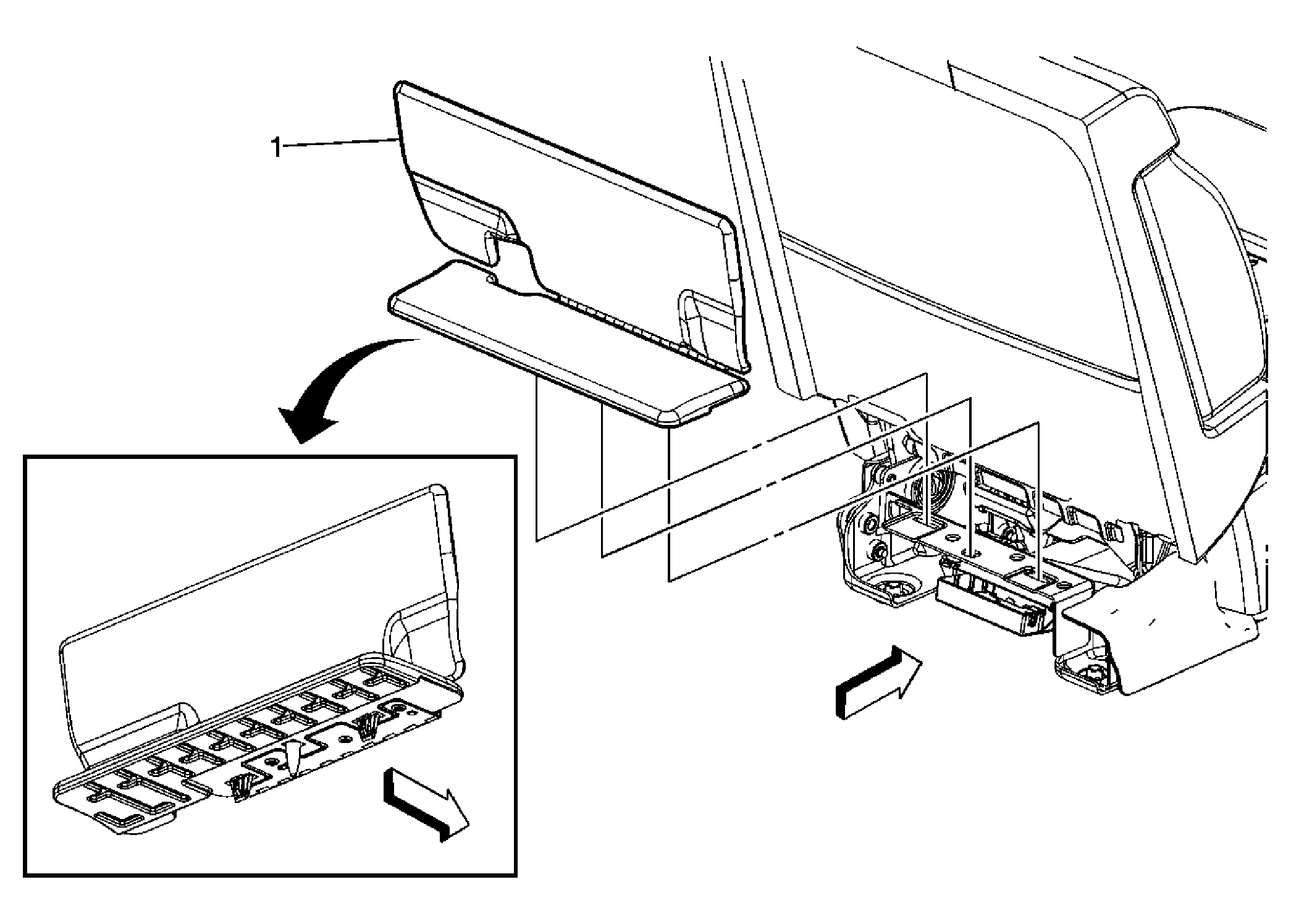

Fig 1: Identifying Rear Seat Back Cushion Filler Panel (AL4)
GM2116922Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Folding Seat Back Cover

Procedure

  1. Pull up gently on the filler panel to disengage from the seat.
  2. Transfer any parts as needed.
