Instrument Panel Compartment Door Replacement

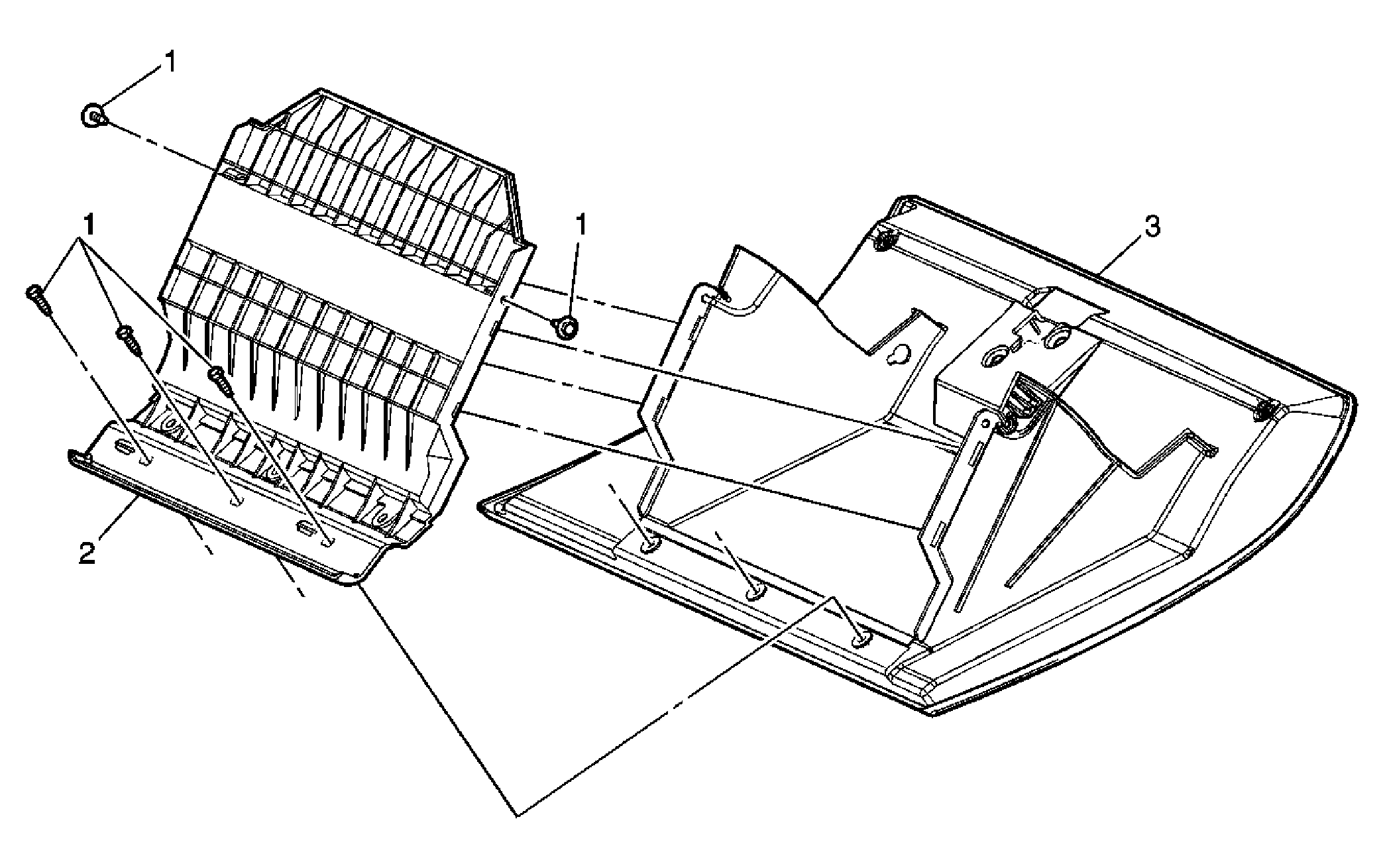

Fig 1: Instrument Panel Compartment Door Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Left Hand Drive) or Instrument Panel Compartment Replacement (Right Hand Drive) . Remove the instrument panel compartment door handle. Refer to Instrument Panel Compartment Door Latch Release Handle Replacement (Left Hand Drive) or Instrument Panel Compartment Door Latch Release Handle Replacement (Right Hand Drive) .
1	Instrument Panel Compartment Hinge Screw (Qty: 5) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Compartment Door Hinge
3	Instrument Panel Compartment Door Assembly
