Instrument Panel Compartment Door Latch Release Handle Replacement (Right Hand Drive)

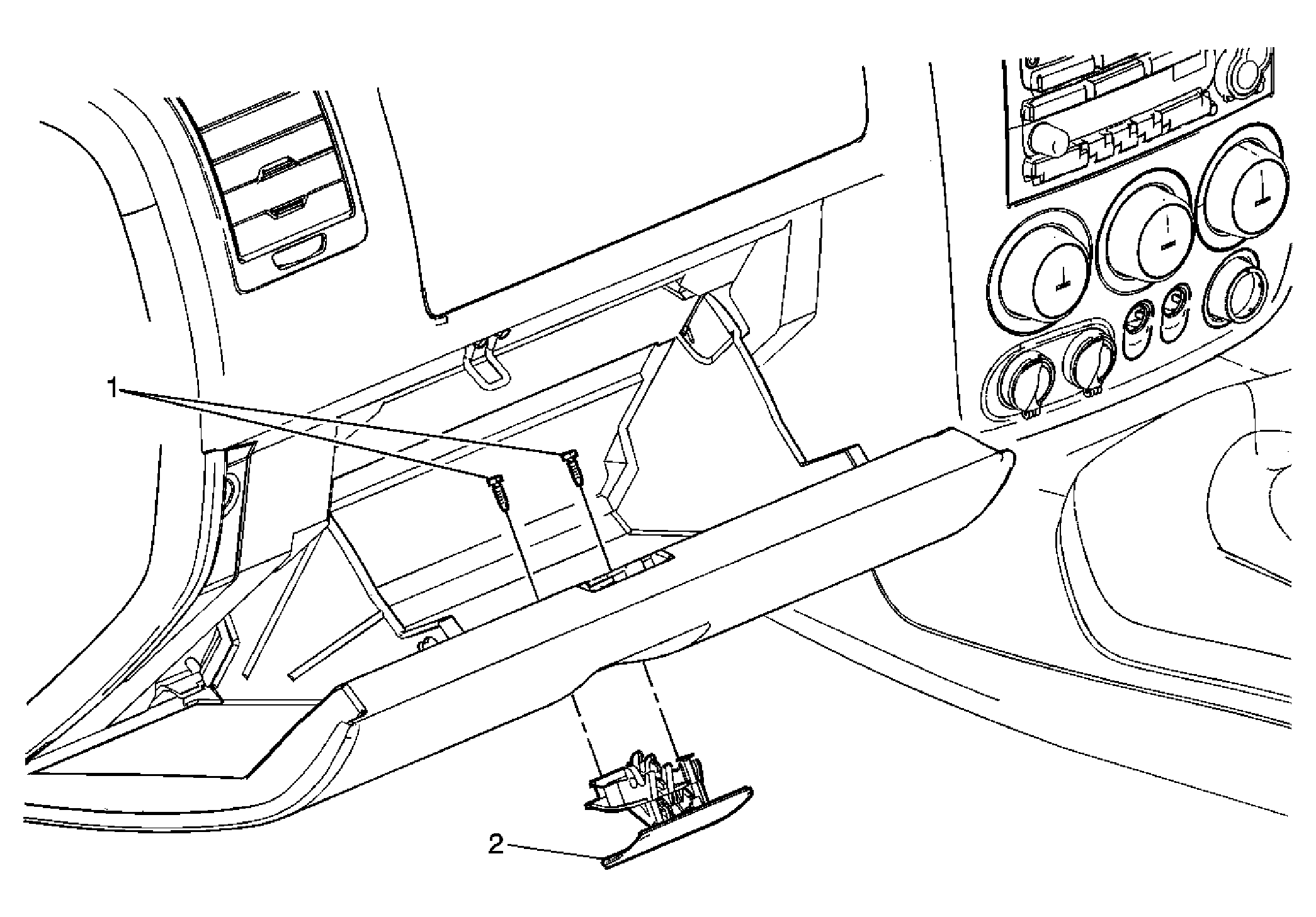

Fig 1: Instrument Panel Compartment Door Latch Release Handle Replacement (Right Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Compartment Handle/Latch Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
2	Instrument Panel Compartment Door Handle/Latch Assembly
