Instrument Panel Compartment Door Latch Release Handle Replacement (Left Hand Drive)

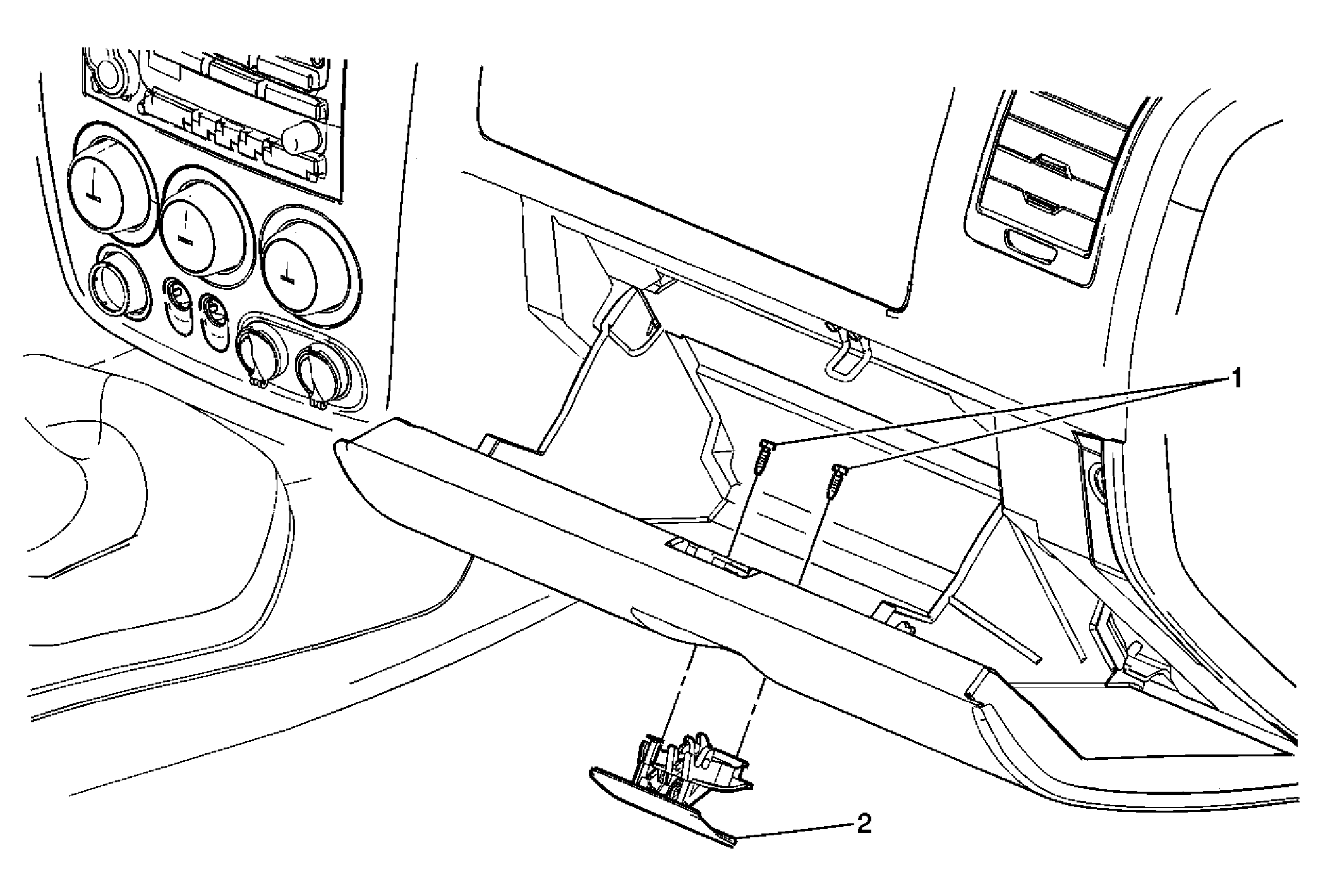

Fig 1: Instrument Panel Compartment Door Latch Release Handle Replacement (Left Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Screw, Instrument Panel Compartment Handle/Latch (Qty: 2) Tighten:  2 N.m (18 lb in)
2	Handle/Latch Assembly, Instrument Panel Compartment Door
