Instrument Panel (I/P) Compartment Hinge Replacement

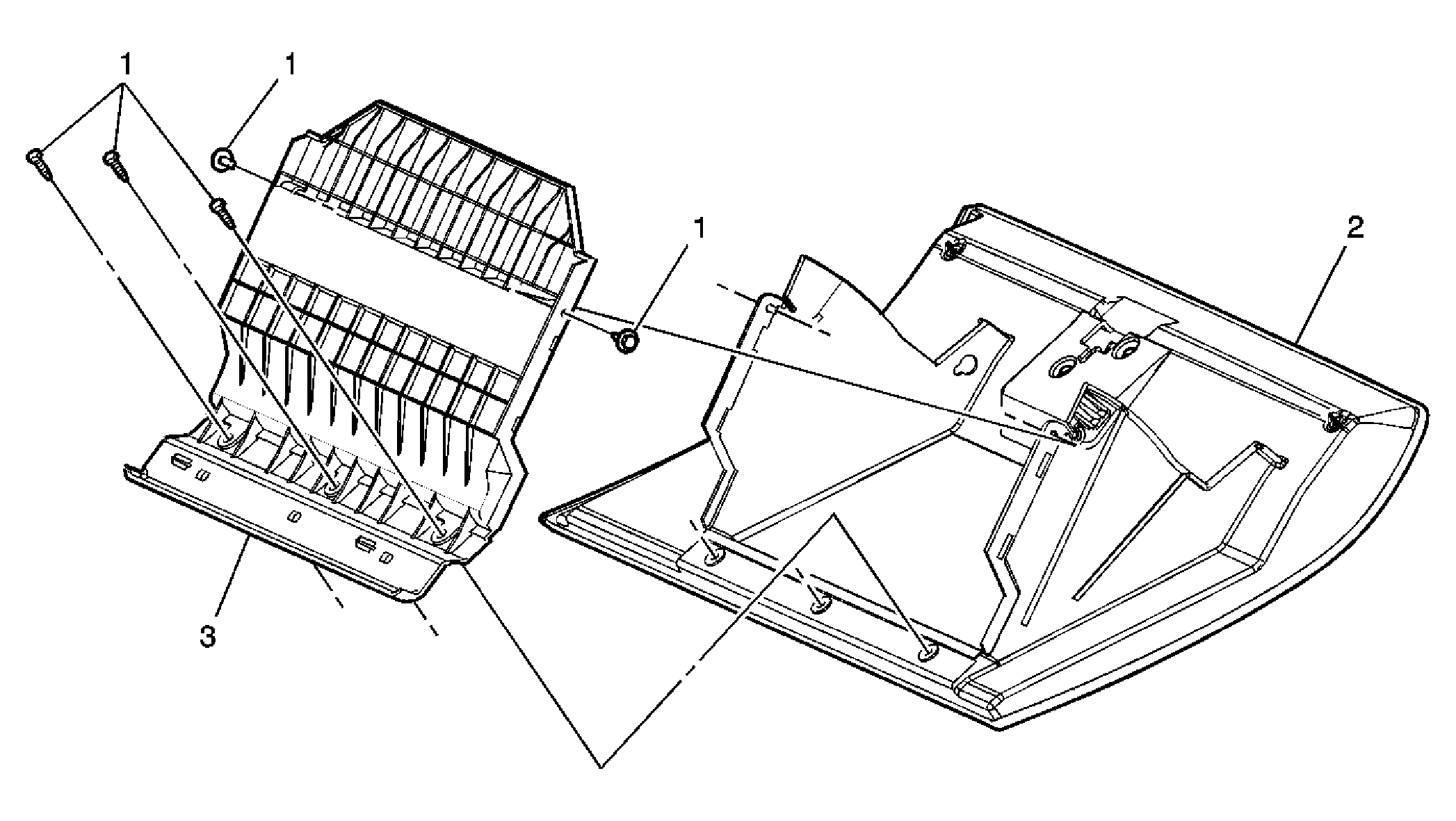

Fig 1: Instrument Panel (I/P) Compartment Hinge Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Left Hand Drive) or Instrument Panel Compartment Replacement (Right Hand Drive) . Remove the instrument panel compartment door handle. Refer to Instrument Panel Compartment Door Latch Release Handle Replacement (Left Hand Drive) or Instrument Panel Compartment Door Latch Release Handle Replacement (Right Hand Drive) .
1	Screw, Instrument Panel Compartment Hinge (Qty: 5) Tighten: 2 N.m (18 lb in)
2	Door Assembly, Instrument Panel Compartment
3	Hinge, Instrument Panel Compartment Door
