Transmission Mount Replacement

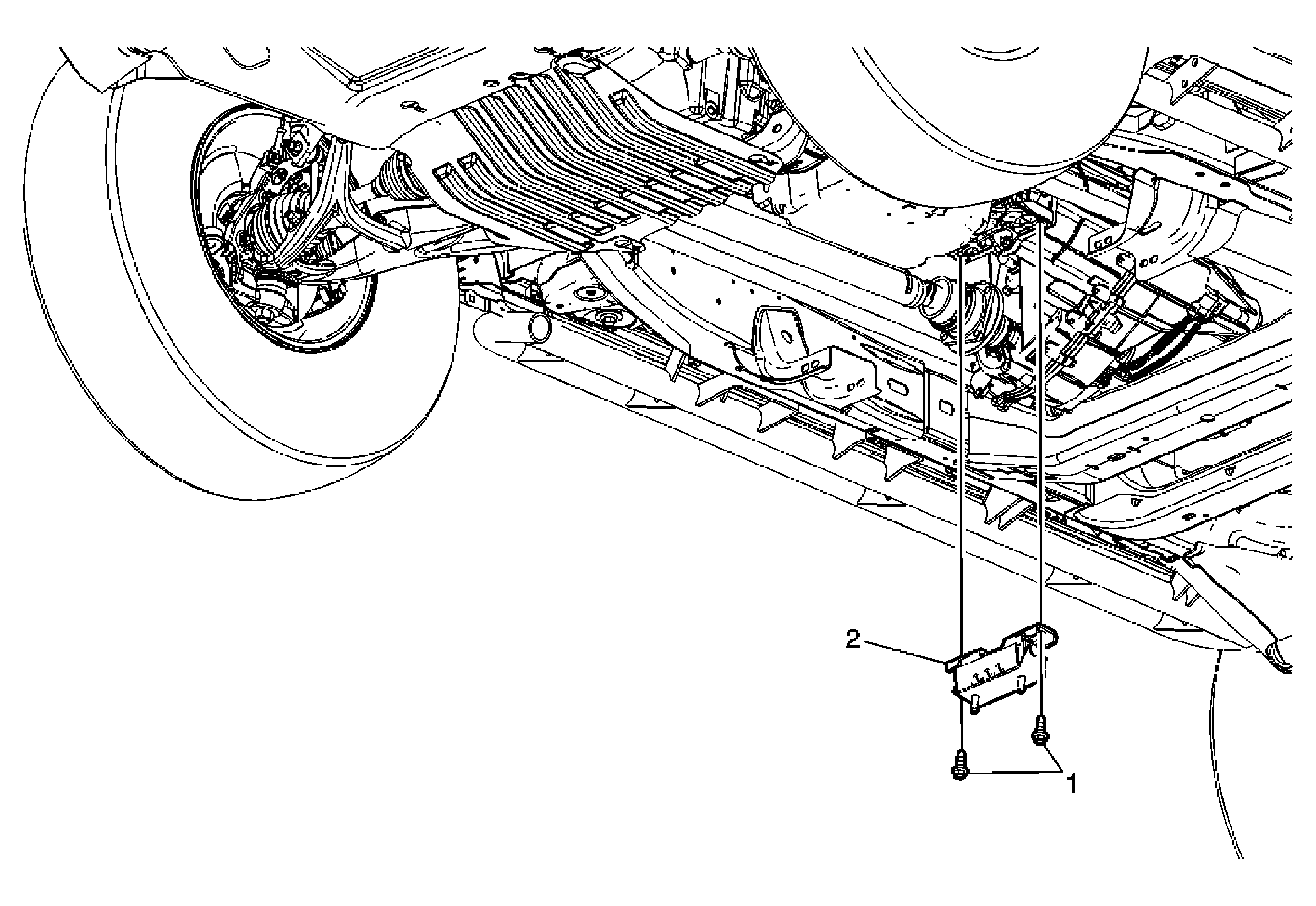

Fig 1: Transmission Mount Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transfer case shield. Refer to Transfer Case Shield Replacement . Remove the transmission crossmember. Refer to Transmission Support Crossmember Replacement .
1	Transmission Mount Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 50 N.m (37 lb ft)
2	Transmission Mount

Callout

Component Name

Preliminary Procedures

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the transfer case shield. Refer to Transfer Case Shield Replacement .
Remove the transmission crossmember. Refer to Transmission Support Crossmember Replacement .

Transmission Mount Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 50 N.m (37 lb ft)

Transmission Mount
