Transfer Case Shield Replacement

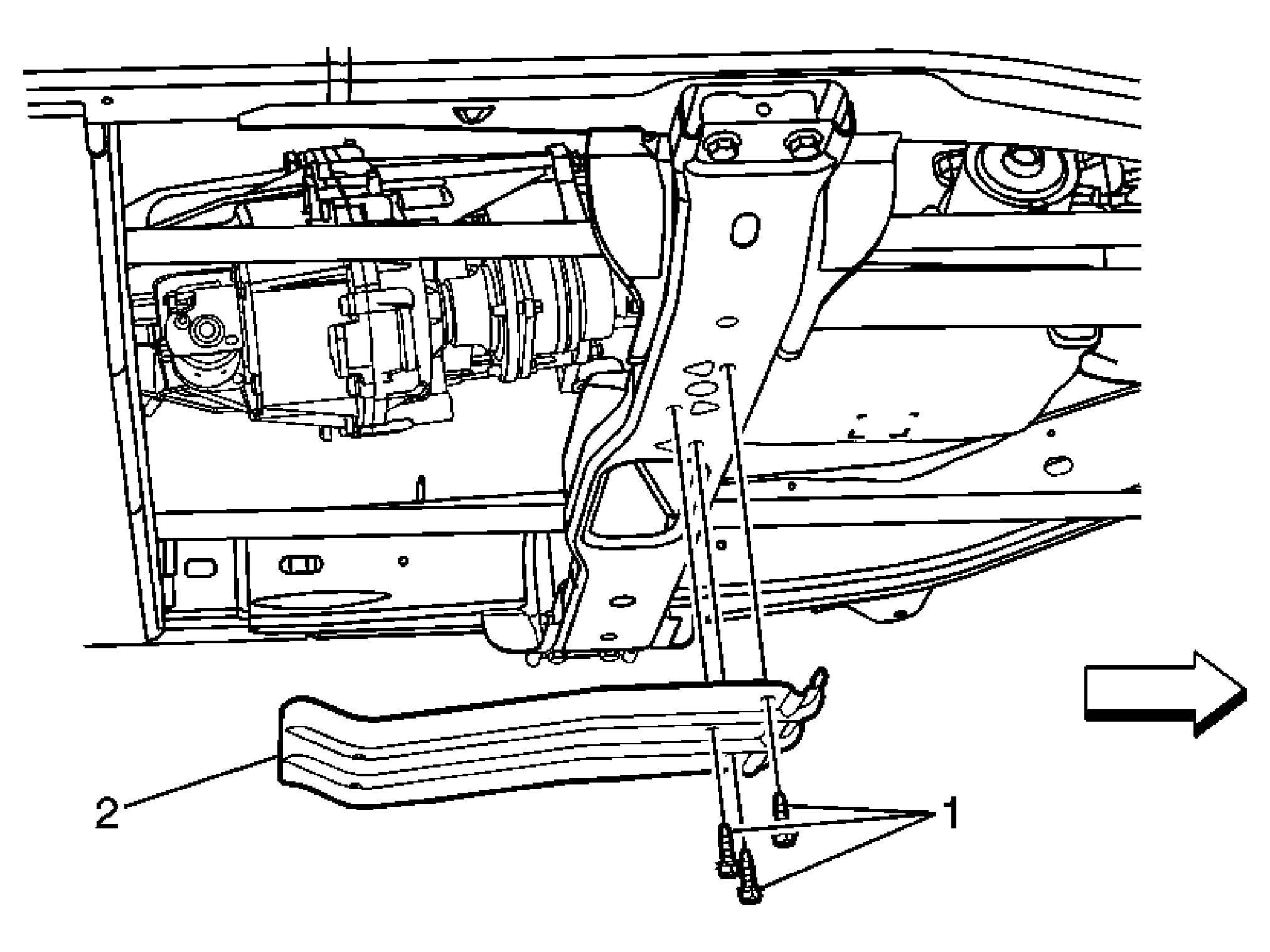

Fig 1: Transfer Case Shield Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Bolt, Transfer Case Shield (Qty: 2) Tighten: 30 N.m (23 lb ft)
2	Shield, Transfer Case
