Transmission Support Crossmember Replacement

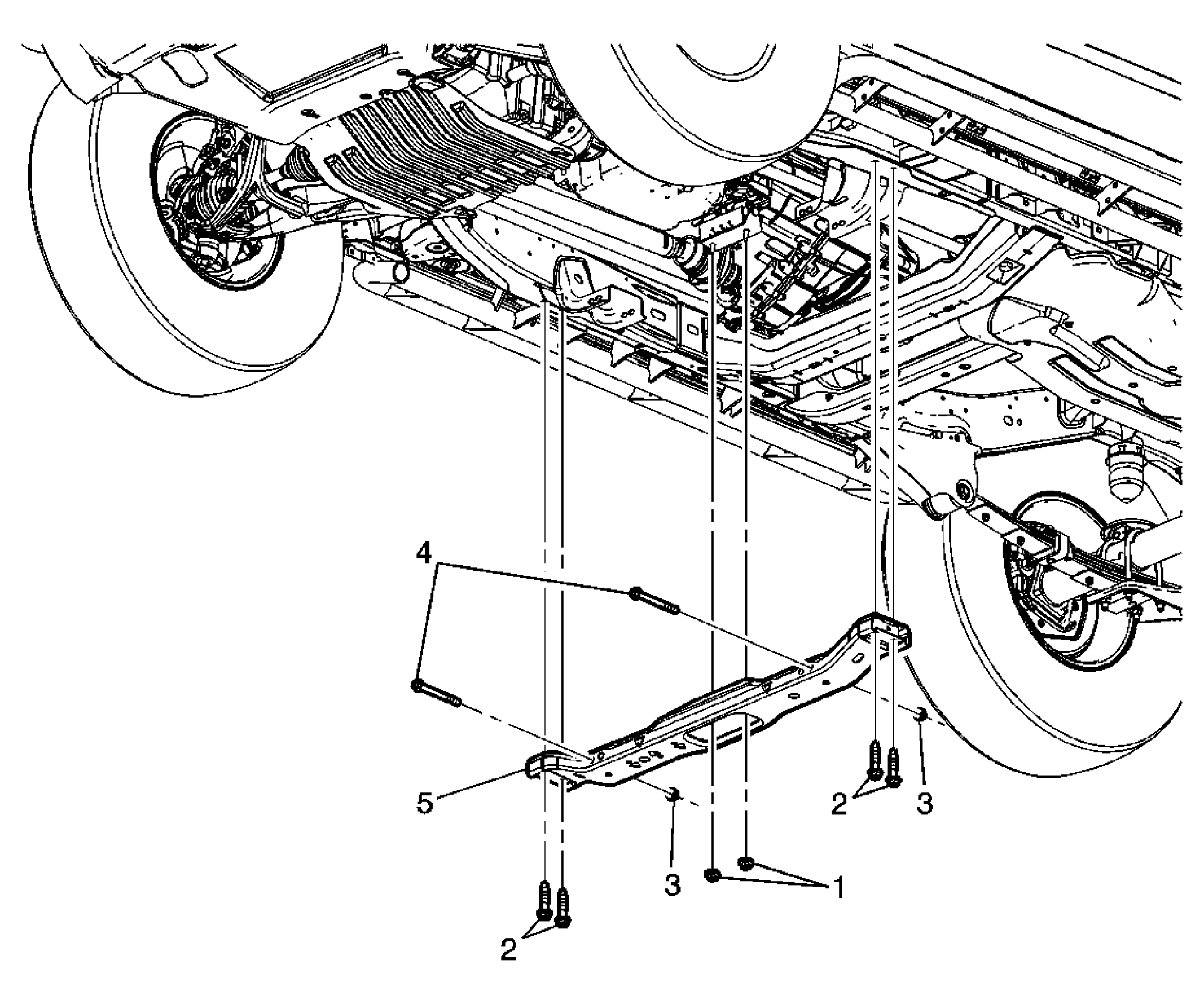

Fig 1: Support Crossmember Replacement - Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transfer case shield. Refer to Transfer Case Shield Replacement . Support the transmission with a transmission jack. Remove the fuel line bracket from the transmission support crossmember.
1	Transmission Mount Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten:: 57 N.m (42 lb ft)
2	Transmission Support Bolt (Qty: 2) Tighten:: 100 N.m (74 lb ft)
3	Transmission Support Nut (Qty: 2) Tighten:: 50 N.m (37 lb ft)
4	Transmission Support Bolt (Qty: 4)
5	Transmission Support
