Rear Seat Back Replacement

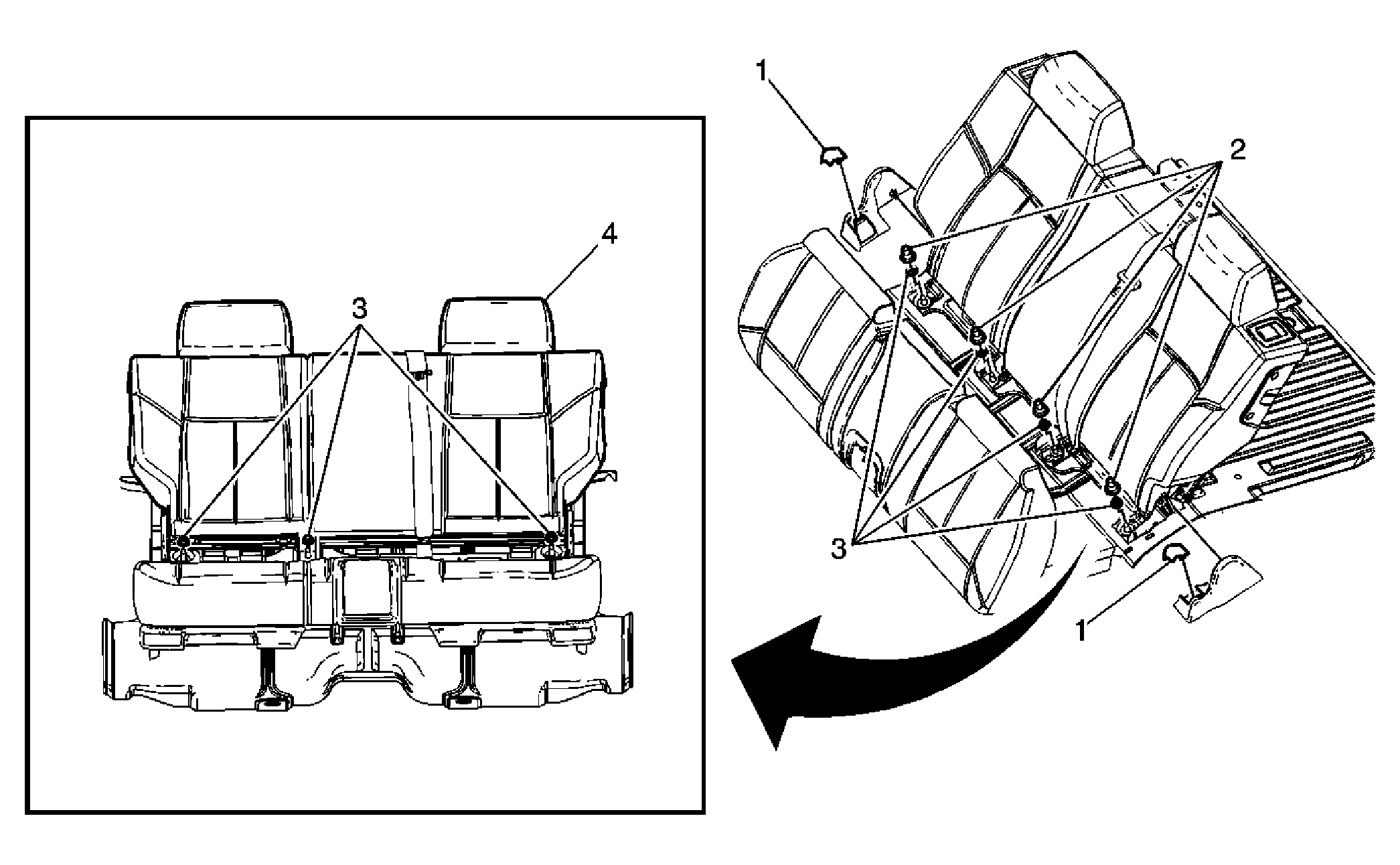

Fig 1: Seat Back Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat back trim panel. Refer to Rear Seat Back Cushion Trim Panel Replacement
1	Rear Seat Hinge Finish Cover Cap (Qty: 2)
2	Rear Seat Back Stud Finish Cover Cap (Qty: 3)
3	Rear Seat Back Cushion Nut (Qty: 7) NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
4	Rear Seat Back Cushion Assembly
