Installation Procedure

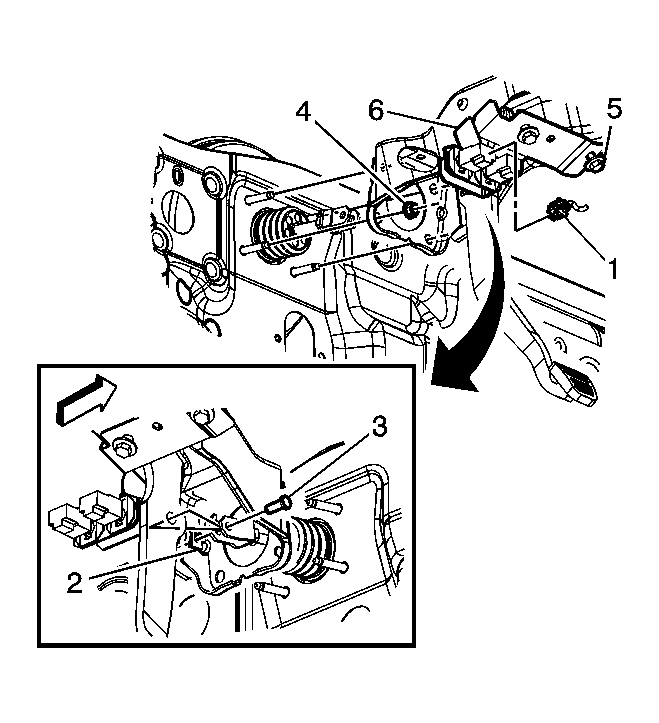

    Fig 1: Brake Pedal Assembly
    GM1619031Courtesy of GENERAL MOTORS CORP.
  1. Install the brake pedal assembly (6) on the brake master cylinder studs.
  2. Finger tighten the mounting bolt (5) to the cowl.
    3. NOTE: Refer to Fastener Notice .
  3. Install the master cylinder nuts (4).

    Tighten:  Tighten the nuts to 27 N.m (20 lb ft).

  4. Tighten the brake pedal bracket bolts (5).

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

  5. Install the clevis pin (3) in the yoke for the brake master cylinder.
  6. Raise the steering column.

    Tighten:  Tighten the bolts to 27 N.m (20 lb ft).

  7. Install the clevis pin retainer (2).
  8. Connect the electrical connectors (1) for the brake switches. Refer to Stop Lamp Switch Adjustment .
  9. Install the knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Left Hand Drive) or Driver Knee Bolster Bracket Replacement (Right Hand Drive) .
  10. Install the knee bolster. Refer to Driver Knee Bolster Replacement (Left Hand Drive) or Driver Knee Bolster Replacement (Right Hand Drive) .
