Driver Knee Bolster Bracket Replacement (Right Hand Drive)

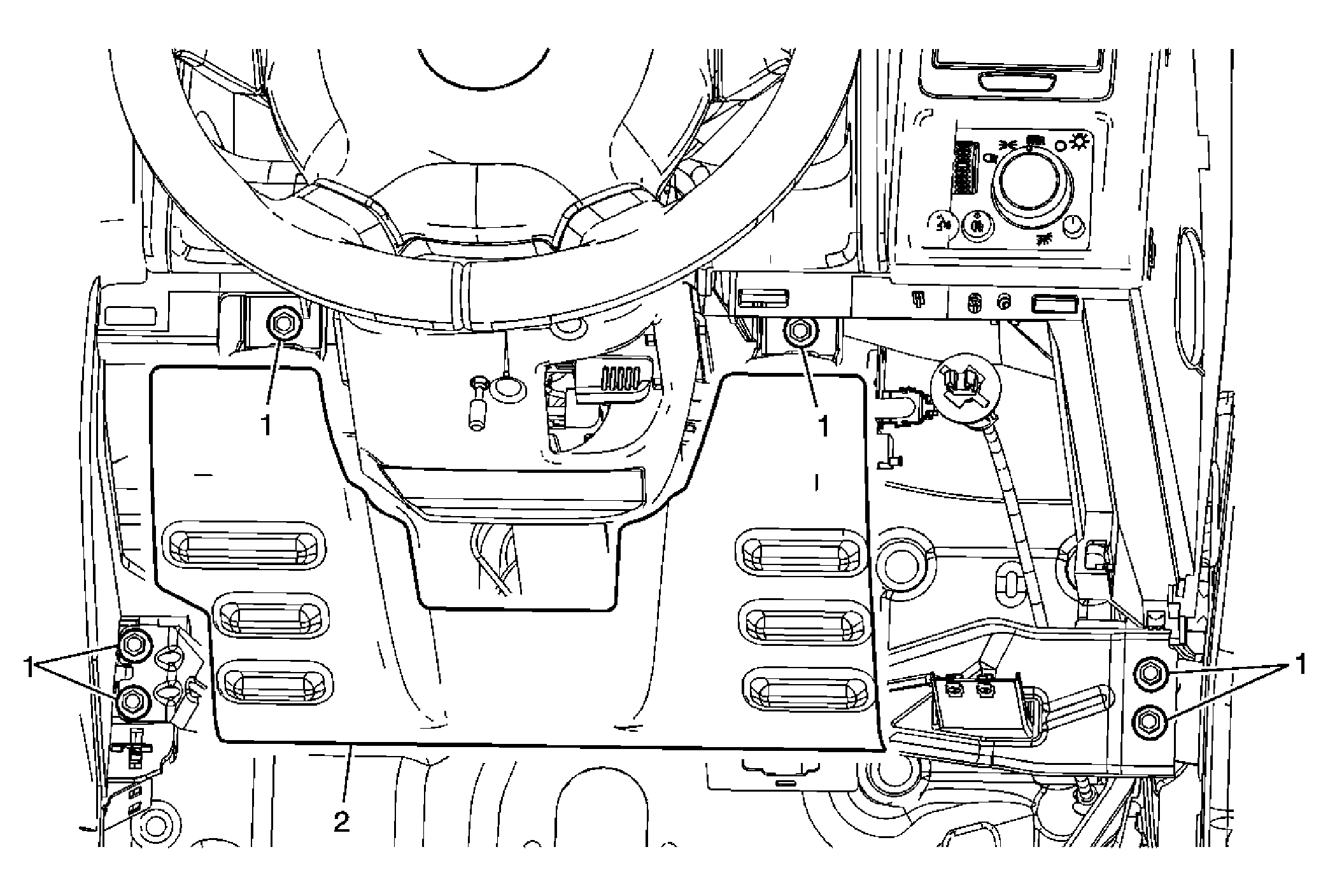

Fig 1: Driver Knee Bolster Bracket Replacement (Right Hand Drive)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the knee bolster. Refer to Driver Knee Bolster Replacement (Left Hand Drive)  or Driver Knee Bolster Replacement (Right Hand Drive) .
1	Knee Bolster Bracket Panel Bolt (Qty: 6) NOTE: Refer to Fastener Notice . Tighten:  3 N.m (27 lb in)
2	Instrument Panel Knee Bolster Bracket Assembly
