Support Replacement - Radiator Grille Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

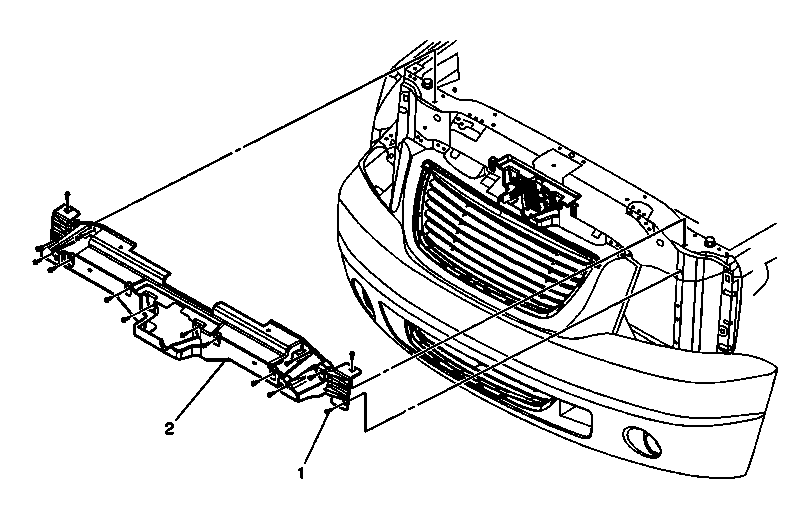

Fig 1: View Of Radiator Grille Reinforcement Support & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the upper radiator air baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (Cadillac) or Radiator Air Upper Baffle and Deflector Replacement (Yukon) . Remove the headlamp assemblies. Refer to Headlamp Replacement (Non HID) or Headlamp Replacement (Yukon) or Headlamp Replacement (Tahoe, Avalanche) or Headlamp Replacement (Cadillac Escalade) . Remove the upper fascia bolts as needed to allow room to clear the radiator grille reinforcement when removing. Refer to Front Bumper Fascia Replacement (Yukon) or Front Bumper Fascia Replacement (Escalade) or Front Bumper Fascia Replacement (Tahoe) or Front Bumper Fascia Replacement (Avalanche) or Front Bumper Fascia Replacement (Z71) . Remove the hood latch. Refer to Hood Latch Replacement .
1	Radiator Grille Reinforcement Support Screws (Qty: 15) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Radiator Grille Reinforcement Support

Callout

Component Name

Preliminary Procedures

Remove the upper radiator air baffle and deflector. Refer to Radiator Air Upper Baffle and Deflector Replacement (Cadillac) or Radiator Air Upper Baffle and Deflector Replacement (Yukon) .
Remove the headlamp assemblies. Refer to Headlamp Replacement (Non HID) or Headlamp Replacement (Yukon) or Headlamp Replacement (Tahoe, Avalanche) or Headlamp Replacement (Cadillac Escalade) .
Remove the upper fascia bolts as needed to allow room to clear the radiator grille reinforcement when removing. Refer to Front Bumper Fascia Replacement (Yukon) or Front Bumper Fascia Replacement (Escalade) or Front Bumper Fascia Replacement (Tahoe) or Front Bumper Fascia Replacement (Avalanche) or Front Bumper Fascia Replacement (Z71) .
Remove the hood latch. Refer to Hood Latch Replacement .

Radiator Grille Reinforcement Support Screws (Qty: 15)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Radiator Grille Reinforcement Support
