Hood Latch Release Cable Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

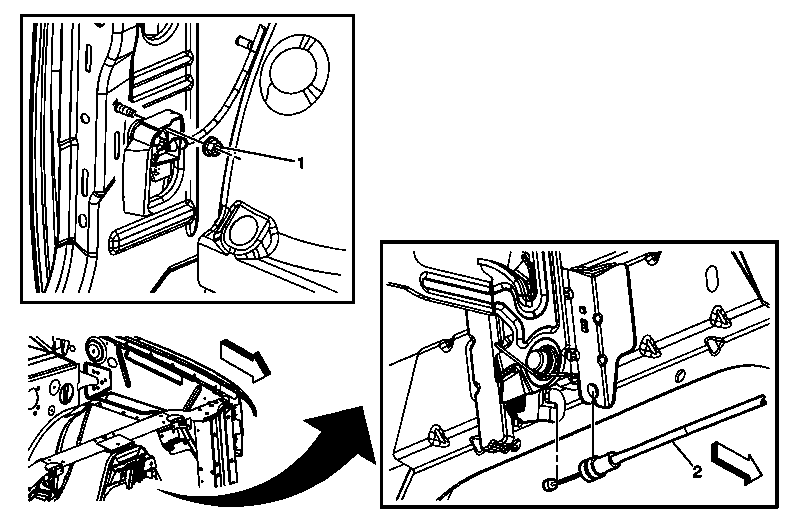

Fig 1: View Of Hood Latch Release Cable & Nut

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the headlamps. Refer to Headlamp Replacement (Non HID) or Headlamp Replacement (Yukon) or Headlamp Replacement (Tahoe, Avalanche) or Headlamp Replacement (Cadillac Escalade) . Remove the grille support. Refer to Support Replacement - Radiator Grille Reinforcement . Remove the hood release handle. Refer to Hood Latch Release Handle Replacement .
1	Hood Latch Release Cable Nut NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Hood Latch Release Cable Tip: Release the cable from the latch assembly and pull through the dash panel. Attach mechanics wire to existing cable to ease installation of the new cable.

Callout

Component Name

Preliminary Procedures

Remove the headlamps. Refer to Headlamp Replacement (Non HID) or Headlamp Replacement (Yukon) or Headlamp Replacement (Tahoe, Avalanche) or Headlamp Replacement (Cadillac Escalade) .
Remove the grille support. Refer to Support Replacement - Radiator Grille Reinforcement .
Remove the hood release handle. Refer to Hood Latch Release Handle Replacement .

Hood Latch Release Cable Nut

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Hood Latch Release Cable
Tip:

Release the cable from the latch assembly and pull through the dash panel.
Attach mechanics wire to existing cable to ease installation of the new cable.
