Rear Seat Riser Replacement (Tahoe/Yukon/Escalade with Split Bench)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

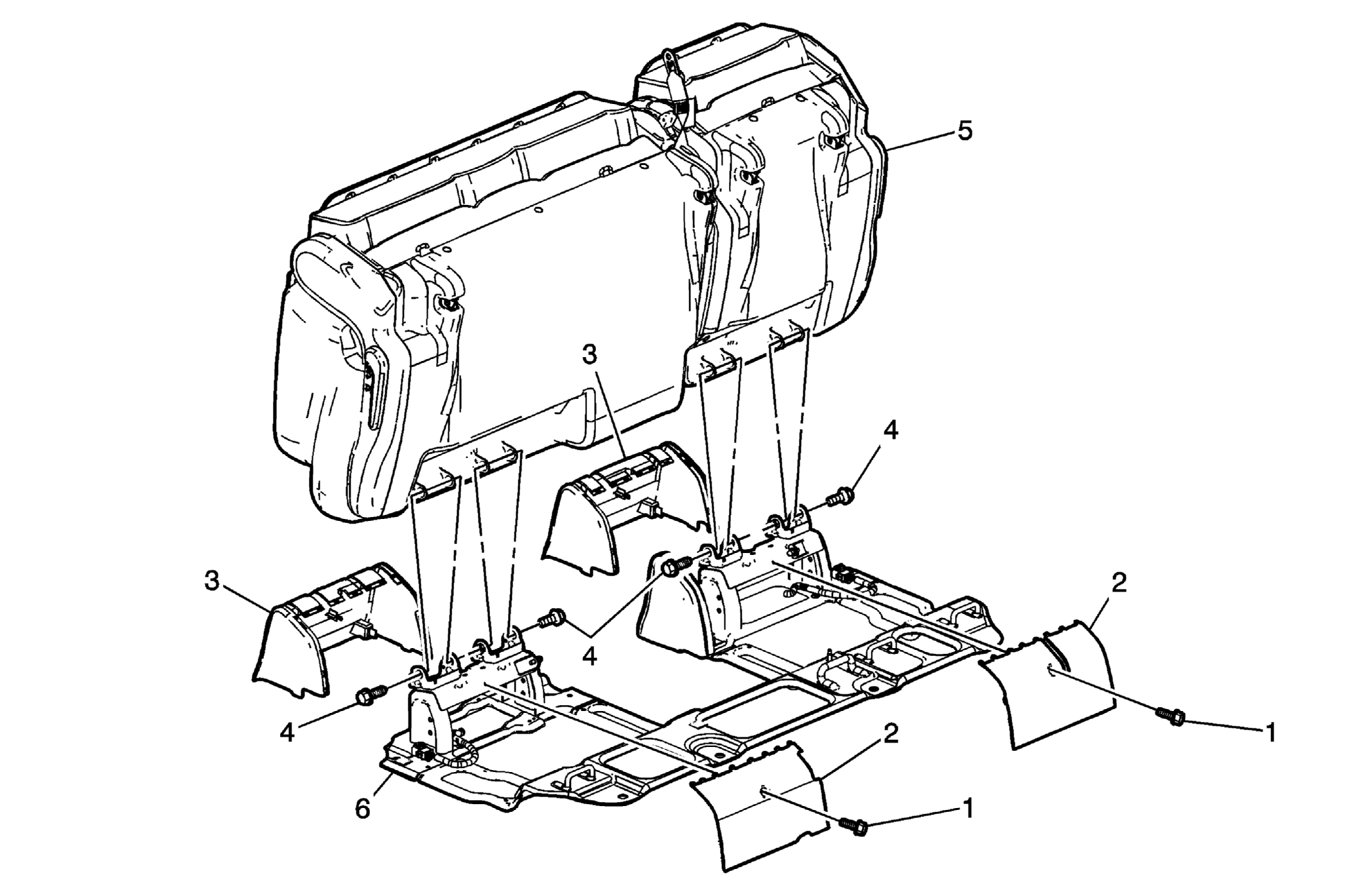

Fig 1: View Of Rear Seat Riser & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear seat. Refer to Rear Seat Replacement (Avalanche/Escalade EXT) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Bucket) or Rear Seat Replacement (Tahoe/Yukon/Escalade with Split Bench) .
1	Rear Seat Riser Finish Cover Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Rear Seat Riser Finish Cover (Qty: 2)
3	Rear Seat Riser Finish Cover (Qty: 2)
4	Rear Seat Riser Bolt (Qty: 4) Tighten: 9 N.m (80 lb in)
5	Rear Seat Assembly Tip: Disconnect the seat riser struts from the seat riser and lift the seats off the riser assembly.
6	Rear Seat Riser
