Front Seat Back Frame Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

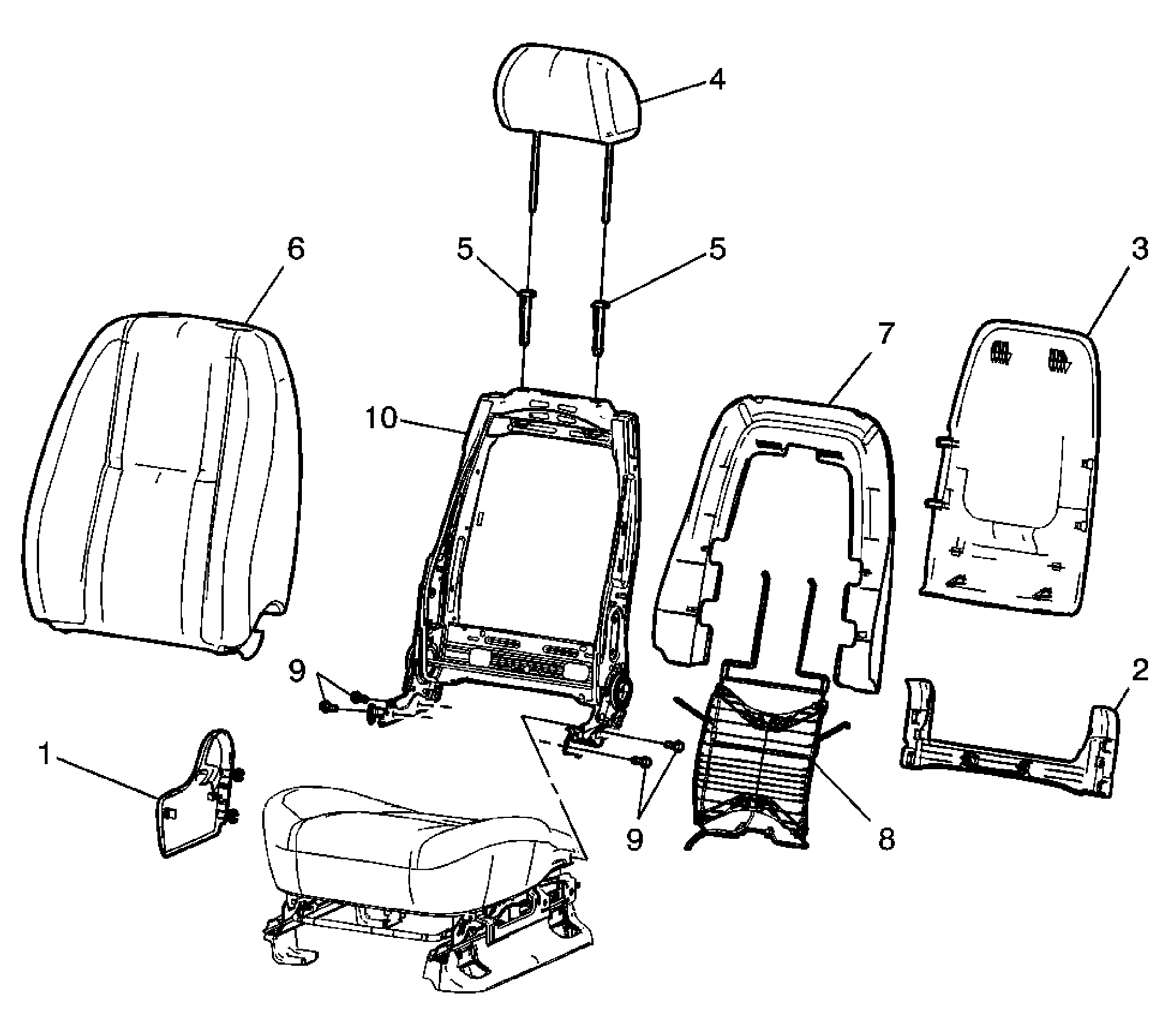

Fig 1: View Of Front Seat Components
GM1678379Courtesy of GENERAL MOTORS CORP.
Front Seat Back Frame Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the front seat. Refer to Front Seat Replacement - Bucket .
  2. Remove the front seat recliner lever, if equipped. Refer to Seat Back Recliner Handle Replacement - Front .
  3. Remove the front seat manual lumbar knob, if equipped. Refer to Lumbar Support Knob Replacement .
  4. Remove the front seat adjuster outer finish cover. Refer to Seat Cushion Outer Trim Panel Replacement - Front Seat (Manual)  or Seat Cushion Outer Trim Panel Replacement - Front Seat (Power) .
1 Front Seat Adjuster Inner Finish Cover
Refer to Seat Cushion Inner Trim Panel Replacement - Front .
2 Front Seat Back Cushion Finish Panel
Tip:  Using a nylon flat bladed tool push the tabs in on the side of the panel to release from the seat back to remove.
3 Front Seat Riser Finish Cover
Tip:  Pull rearward to disengage the cover from the seat riser.
4 Front Seat Head Restraint Assembly
Tip:
  1. Depress the button on the inboard head restraint guide to raise the head restraint to the full up position.
  2. Insert a small diameter tool into the hole on the inboard side of the outboard head restraint guide and pull upward to remove.
5 Front Seat Head Restraint Guide (Qty: 2)
Tip:  Squeeze the bottom of the guide together and push up to remove from the seat back.
6 Seat Back Cushion Cover and Pad
Refer to Front Seat Back Cover and Cushion Pad Replacement .
7 Front Seat Back Finish Panel Support
8 Seat Lumbar Subsystem
Tip:
  1. Disconnect the cable.
  2. Pull the retainers out at the bottom and then slide the upper spring wire out from the top of the seat frame.
9 Seat Back Frame Bolt (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  9 N.m (80 lb in)
10 Seat Back Frame
