Transfer Case Selector Switch Replacement

WARNING: This page is about a different car, the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

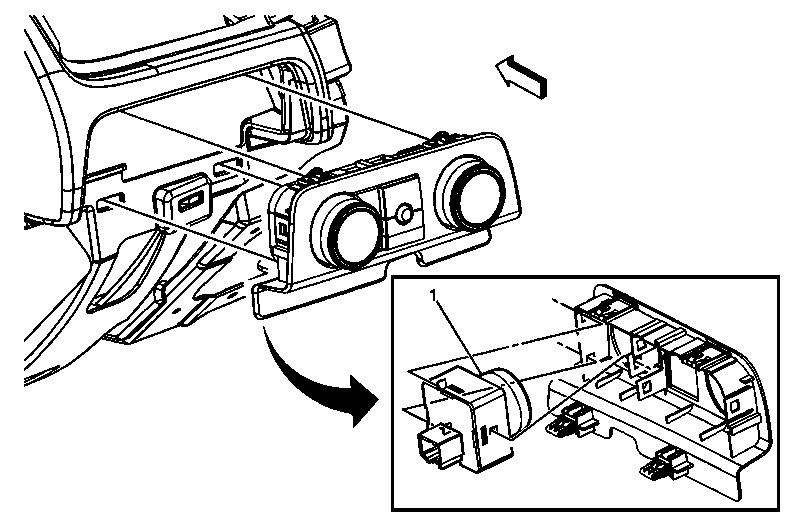

Fig 1: Transfer Case Shift Control Switch (With SLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the headlight bezel. Refer to Headlamp Switch Bezel Replacement (Except Cadillac) , Headlamp Switch Bezel Replacement (Cadillac) .
1	Transfer Case Select Switch Disconnect the electrical connectors from the headlight and control switches. It may be necessary to use a small flat bladed screw driver to depress the locking tabs to remove the control switch.
