Stabilizer Shaft Replacement (1500)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

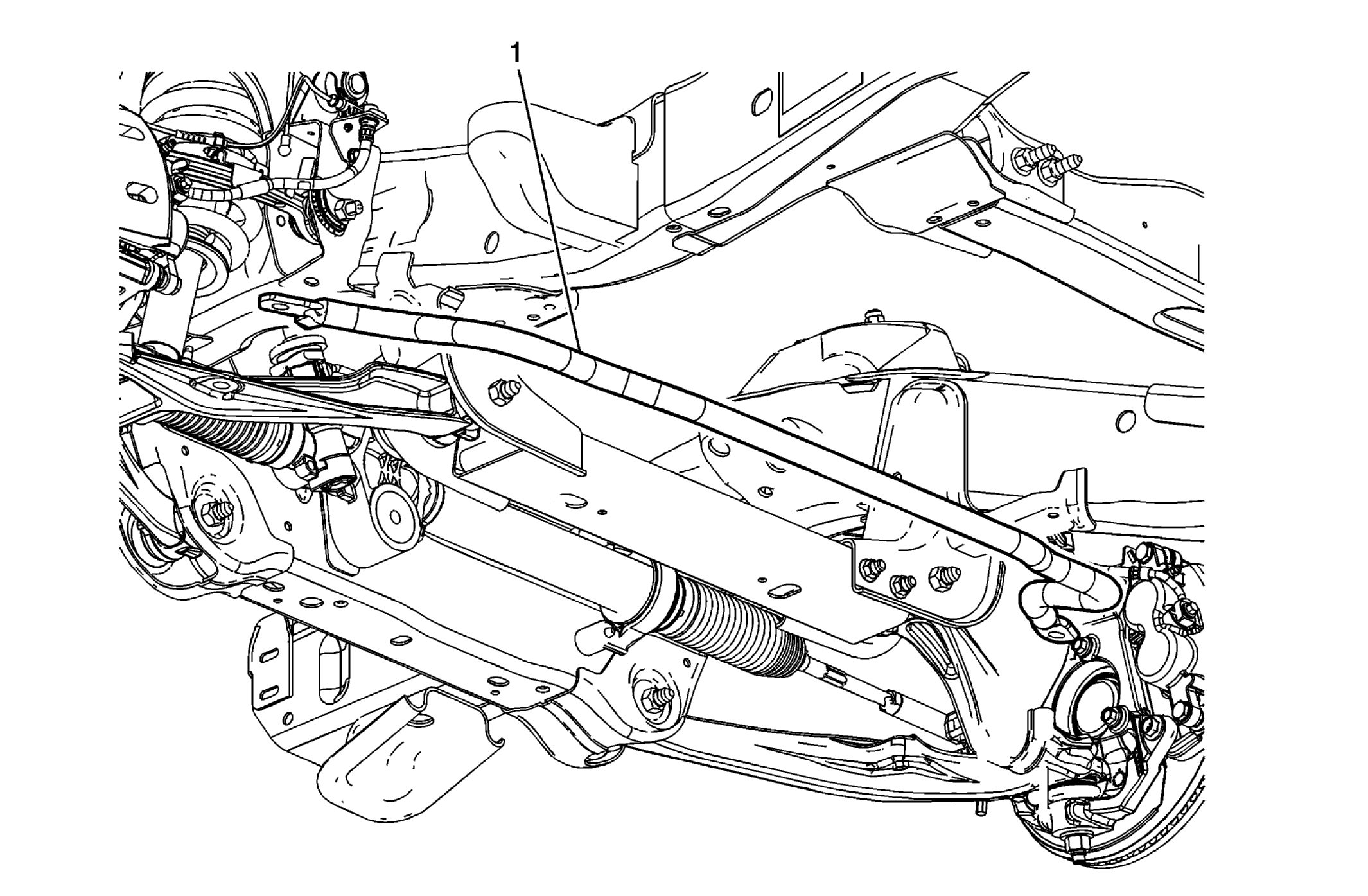

Fig 1: Stabilizer Shaft (1500)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement (1500) , Stabilizer Shaft Link Replacement (2500) . Remove the front stabilizer shaft insulators. Refer to Stabilizer Shaft Insulator Replacement (1500) , Stabilizer Shaft Insulator Replacement (2500) .
1	Front Stabilizer Shaft

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement (1500) , Stabilizer Shaft Link Replacement (2500) .
Remove the front stabilizer shaft insulators. Refer to Stabilizer Shaft Insulator Replacement (1500) , Stabilizer Shaft Insulator Replacement (2500) .

Front Stabilizer Shaft
