Stabilizer Shaft Link Replacement (1500)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

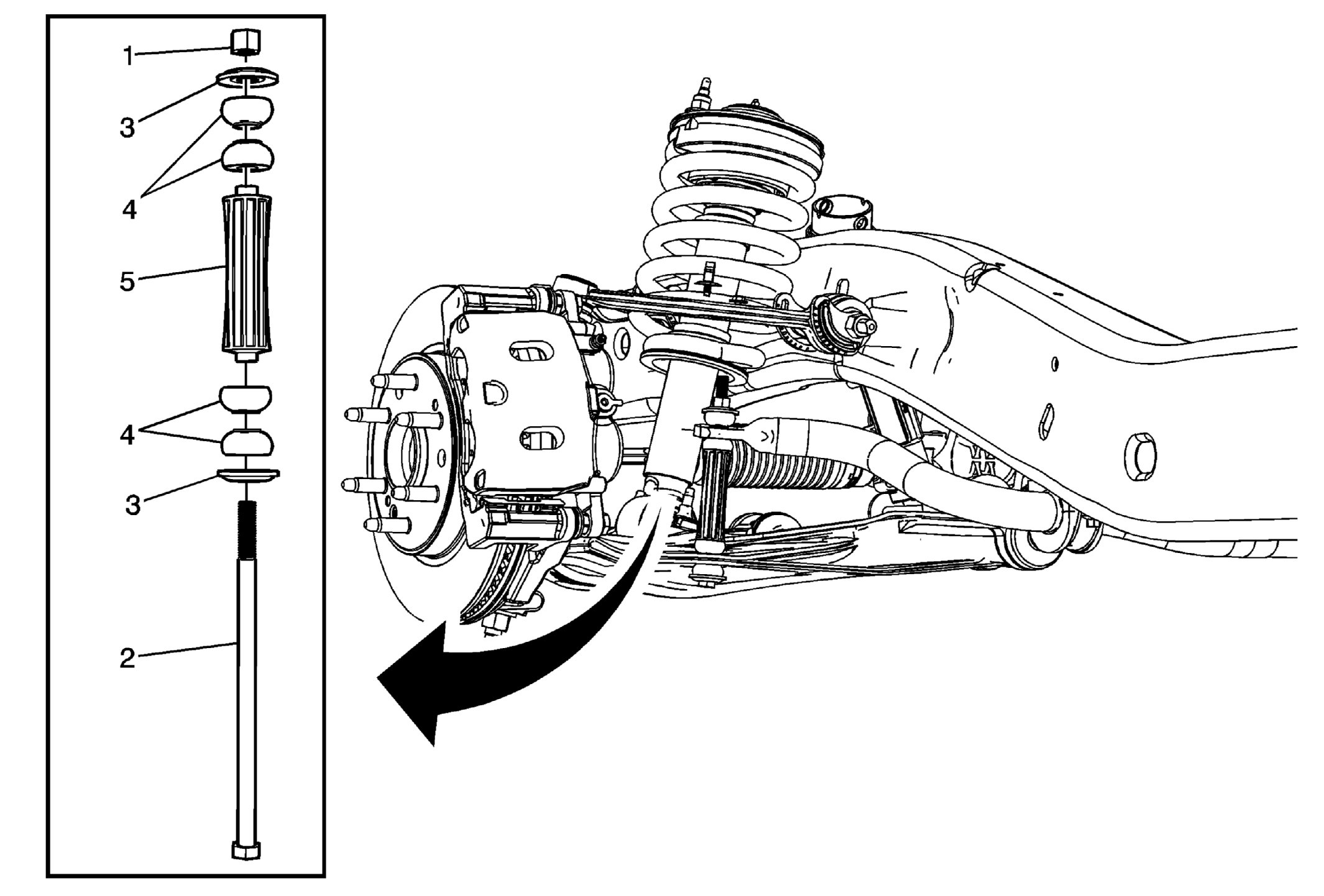

Fig 1: Stabilizer Shaft Link (1500)
GM1865546Courtesy of GENERAL MOTORS CORP.
Stabilizer Shaft Link Replacement (1500)

Callout Component Name
Preliminary Procedure
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1 Stabilizer Shaft Link Nut
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove all traces of the original adhesive patch.
  2. Apply Threadlocker GM P/N 12345382 (Canadian P/N 10953489) BLUE LOCTITE # 242 on the threads of the bolts.

Tighten
23 N.m (17 lb ft)
2 Stabilizer Shaft Link Bolt
3 Stabilizer Shaft Link Washer (Qty: 2)
4 Stabilizer Shaft Link Insulator (Qty: 4)
5 Stabilizer Shaft Link Spacer
