Steering Column Tilt Wheel Switch Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

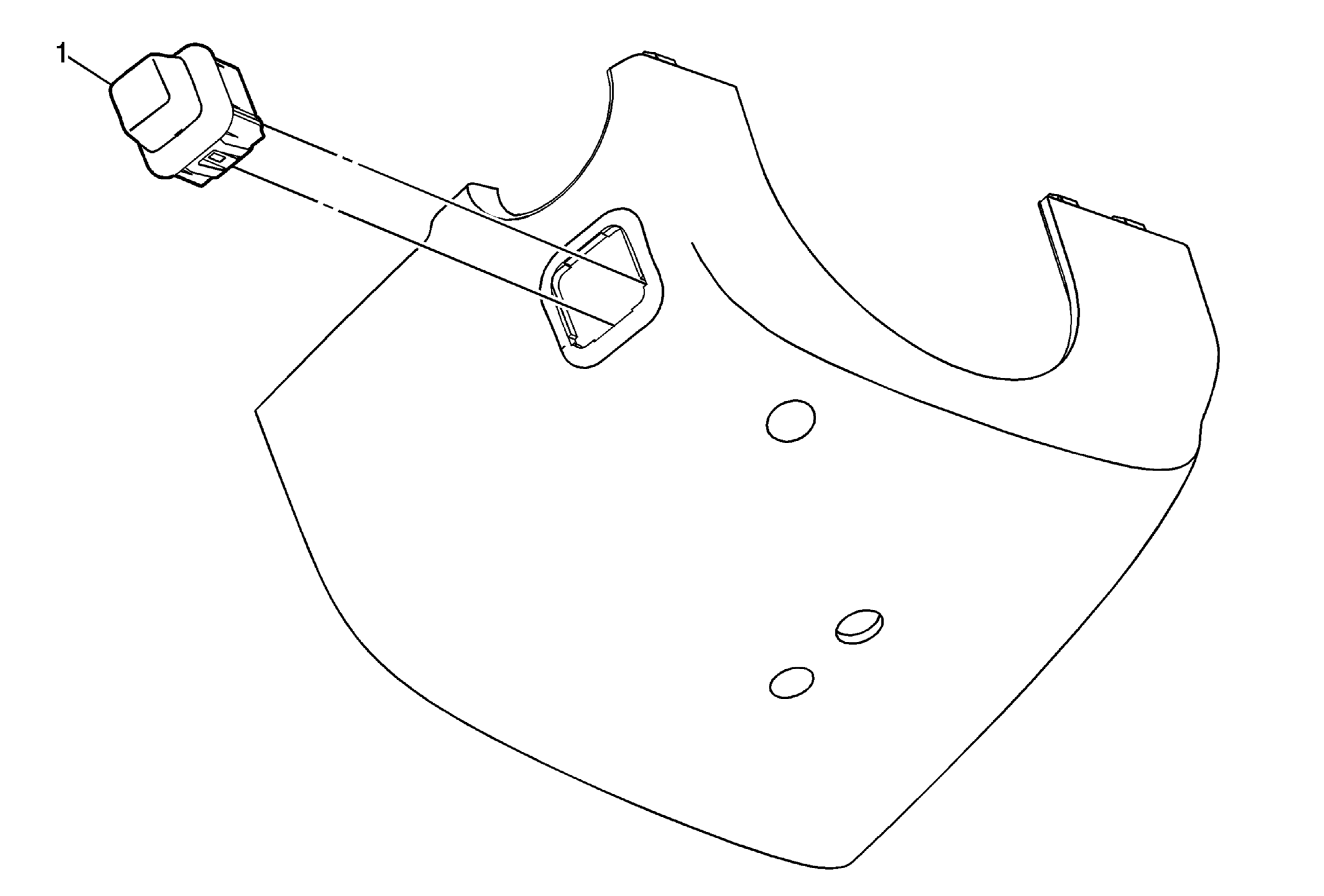

Fig 1: Steering Column Tilt Wheel Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the steering column lower shroud. Refer to Steering Column Shroud Replacement (With Electronic Tilt Steering) , Steering Column Shroud Replacement (Without Electronic Tilt Steering) .
1	Steering Column Tilt Wheel Switch Procedure Disconnect any electrical connectors as needed. Release the plastic retaining tabs to release the switch from the steering column lower shroud.

Callout

Component Name

Preliminary Procedure
Remove the steering column lower shroud. Refer to Steering Column Shroud Replacement (With Electronic Tilt Steering) , Steering Column Shroud Replacement (Without Electronic Tilt Steering) .

Steering Column Tilt Wheel Switch

Procedure

Disconnect any electrical connectors as needed.
Release the plastic retaining tabs to release the switch from the steering column lower shroud.
