Rear Seat Number 2 Center Belt Replacement (AS3)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

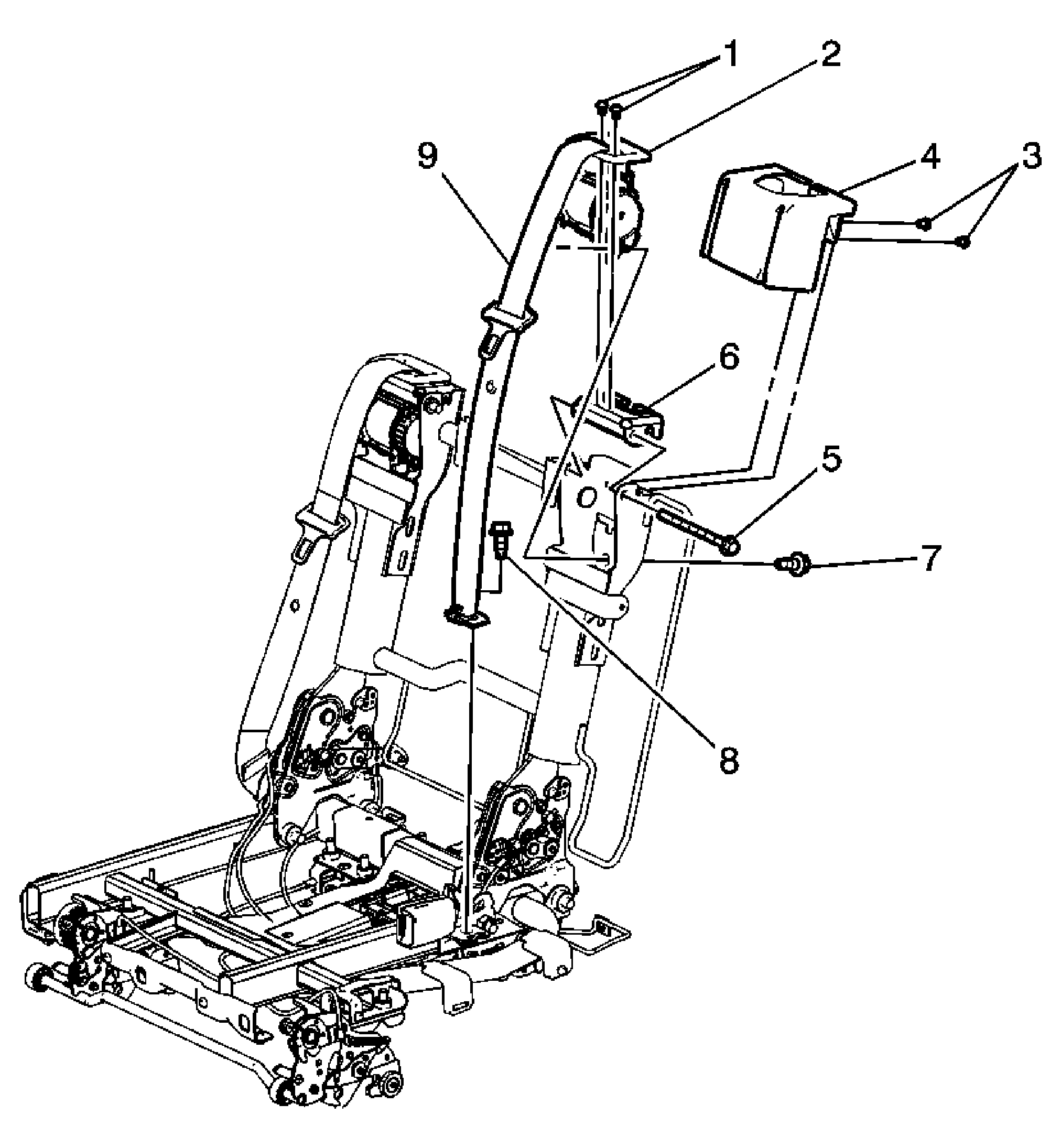

Fig 1: Identifying Rear Seat Number 2 Center Belt Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the right side rear seat No. 2. Refer to Rear Number 2 Seat Replacement (Tahoe/Yukon/Escalade) or Rear Number 2 Seat Replacement (Suburban/Yukon XL) . Remove rear seat No. 2 back cushion cover and pad. Refer to Rear Seat Number 2 Back Cushion Cover and Pad Replacement . Remove rear seat No. 2 back cushion cover and pad. Refer to Rear Seat Number 2 Cushion Cover and Pad Replacement .
1	Rear Seat Shoulder Belt Opening Bezel Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tip: Position the seat belt webbing aside to access the screws. Tighten: 2 N.m (18 in)
2	Rear Seat Shoulder Belt Opening Bezel Tip: The bezel will remain on the seat belt assembly.
3	Rear Seat Hinge Finish Cover Screw (Qty: 2)
4	Rear Seat Hinge Finish Cover Procedure: Slide the cover upward and off the seat belt assembly.
5	Rear Seat No. 2 Belt Bracket Bolt Tighten: 52 N.m (38 lb ft)
6	Rear Seat No. 2 Belt Bracket
7	Rear Seat No. 2 Belt Bolt Tighten: 52 N.m (38 lb ft)
8	Rear Seat No. 2 Belt Bolt Tighten: 52 N.m (38 lb ft)
9	Rear Seat No. 2 Belt Assembly
