Radiator Upper Grille Replacement (PLATINUM)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

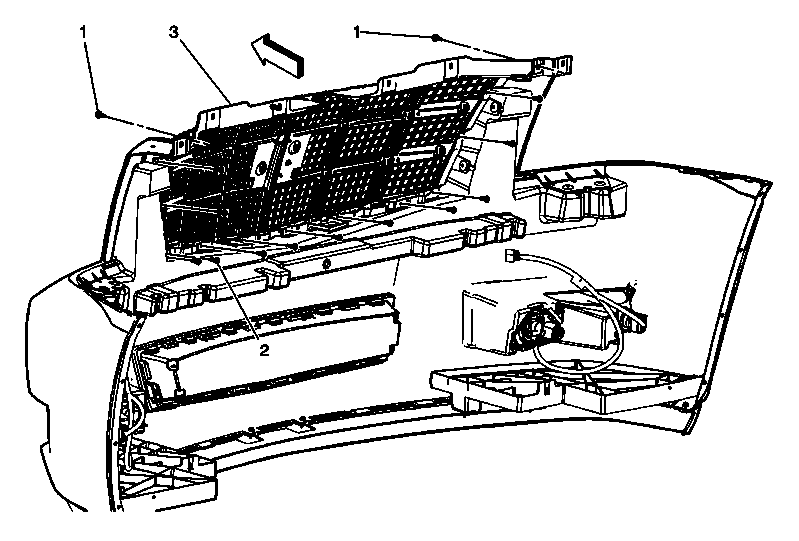

Fig 1: View Of Radiator Upper Grille

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Escalade) or Front Bumper Fascia Replacement (Tahoe) or Front Bumper Fascia Replacement (Avalanche) or Front Bumper Fascia Replacement (Z71) or Front Bumper Fascia Replacement (Yukon) . Transfer the radiator grille emblem to the new grille assembly. Refer to Radiator Grille Emblem/Nameplate Replacement (GMC) or Radiator Grille Emblem/Nameplate Replacement (Escalade) or Radiator Grille Emblem/Nameplate Replacement (Chevrolet Tahoe Two-mode Hybrid) or Radiator Grille Emblem/Nameplate Replacement (PLATINUM) .
1	Radiator Outer Grille Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: Hand tighten the screws only.
2	Radiator Inner Grille Screw (Qty: 13) Tighten: Hand tighten the screws only.
3	Radiator Upper Grille Assembly Tip: Pull the upper grille assembly outward from the front bumper fascia.
