Instrument Panel Lower Compartment Replacement

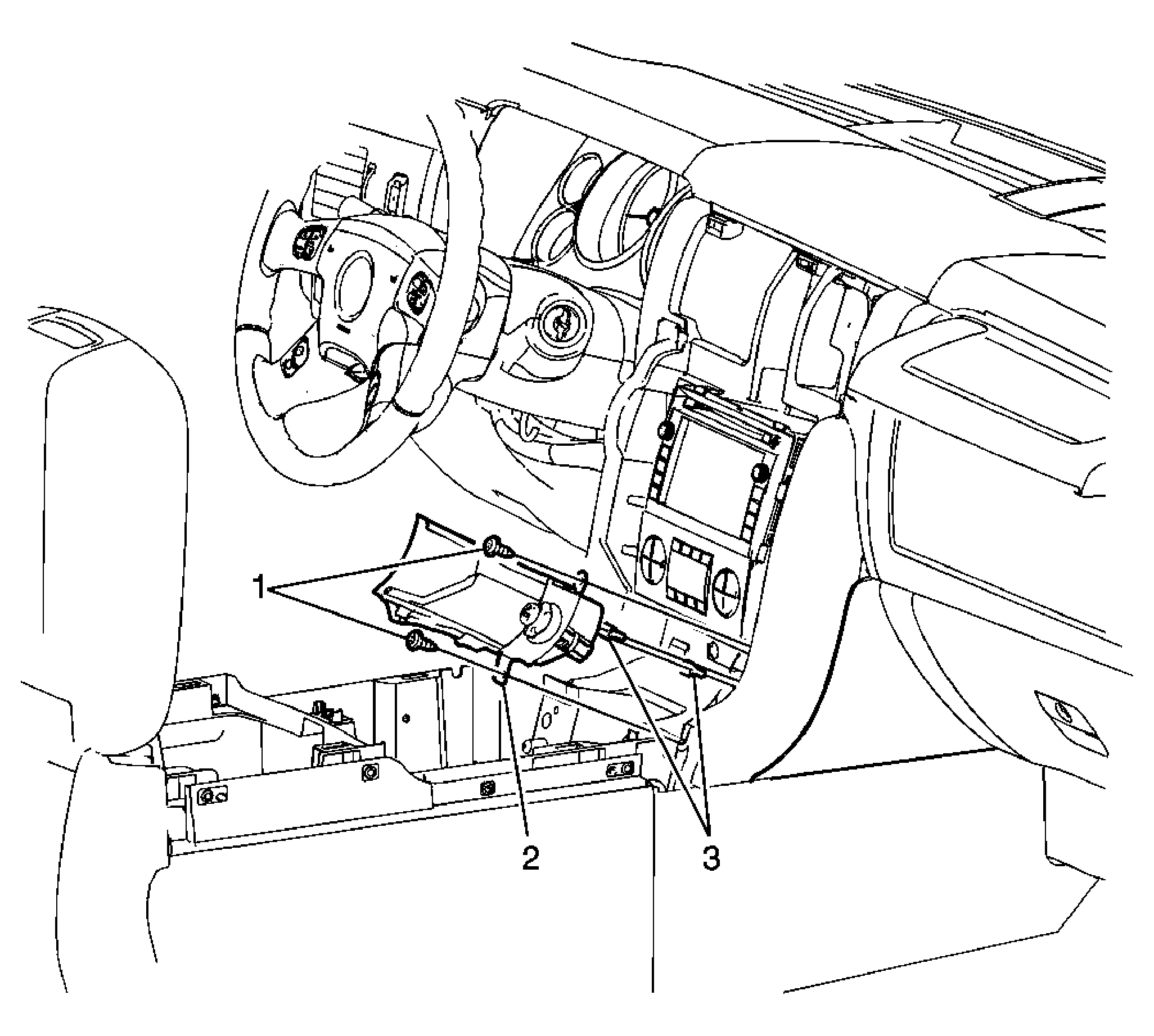

Fig 1: Instrument Panel Lower Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
2	Instrument Panel Cluster Trim Plate Bezel Assembly
Preliminary Procedure Remove the instrument panel center air outlet bezel. Refer to Instrument Panel Center Air Outlet Bezel Replacement . Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement .
1	Instrument Panel Lower Compartment Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Lower Compartment Assembly Procedure Disconnect the electrical connections. When replacing the instrument panel lower compartment, transfer all necessary components.
3	Retainer Clip (Qty: 2)
