Console Shift Lever Bezel Replacement

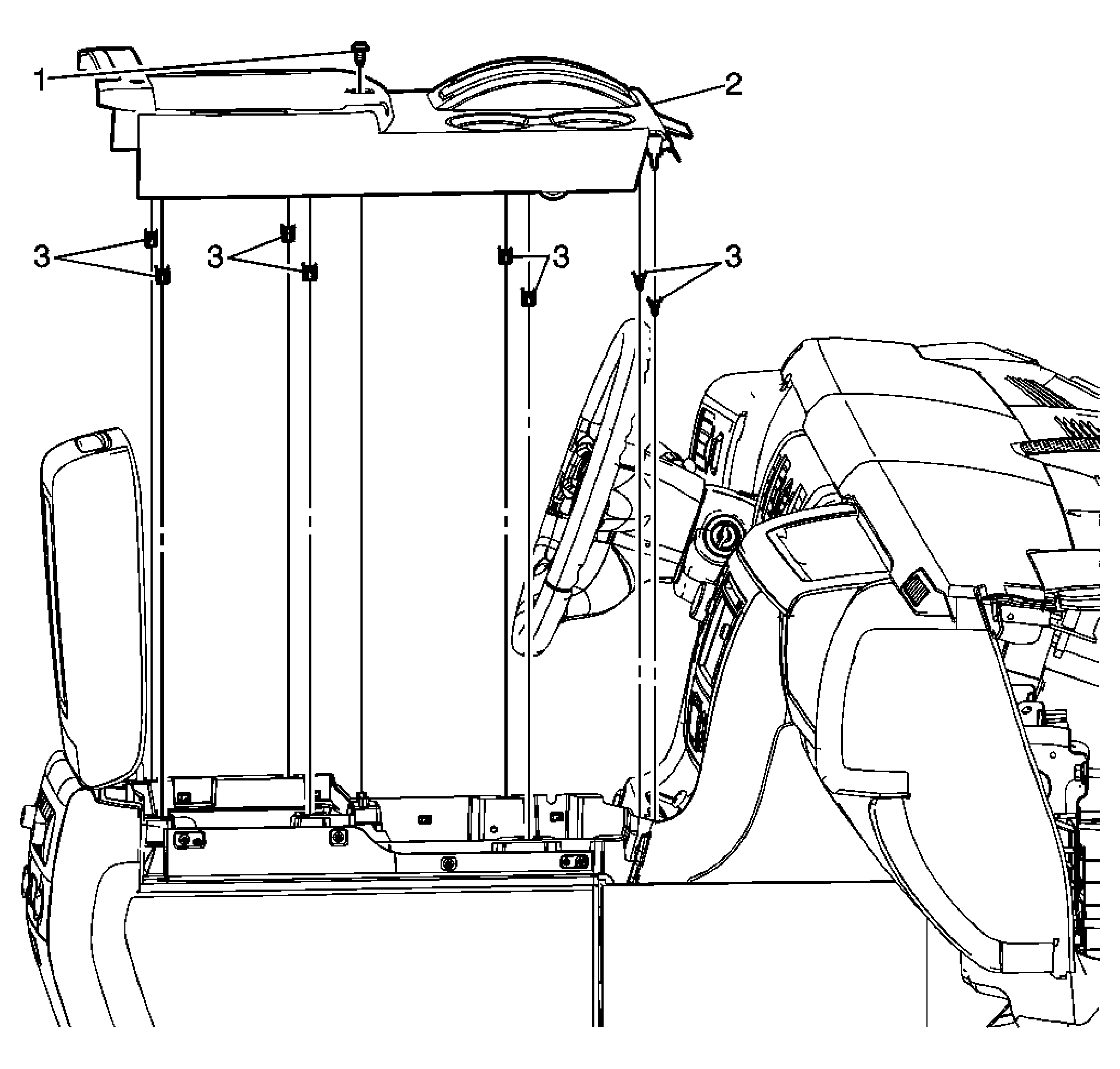

Fig 1: Console Shift Lever Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the transmission control lever knob. Refer to Transmission Control Lever Knob Replacement .
1	Console Shift Lever Bezel Screw NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Console Shift Lever Bezel Assembly Procedure Lift the console shift lever bezel straight up disengaging the retainers from the console assembly. Disconnect the electrical connections. When replacing the console shift lever bezel, transfer all necessary components.
3	Retainer Clip (Qty: 8)
