Instrument Panel Center Air Outlet Bezel Replacement

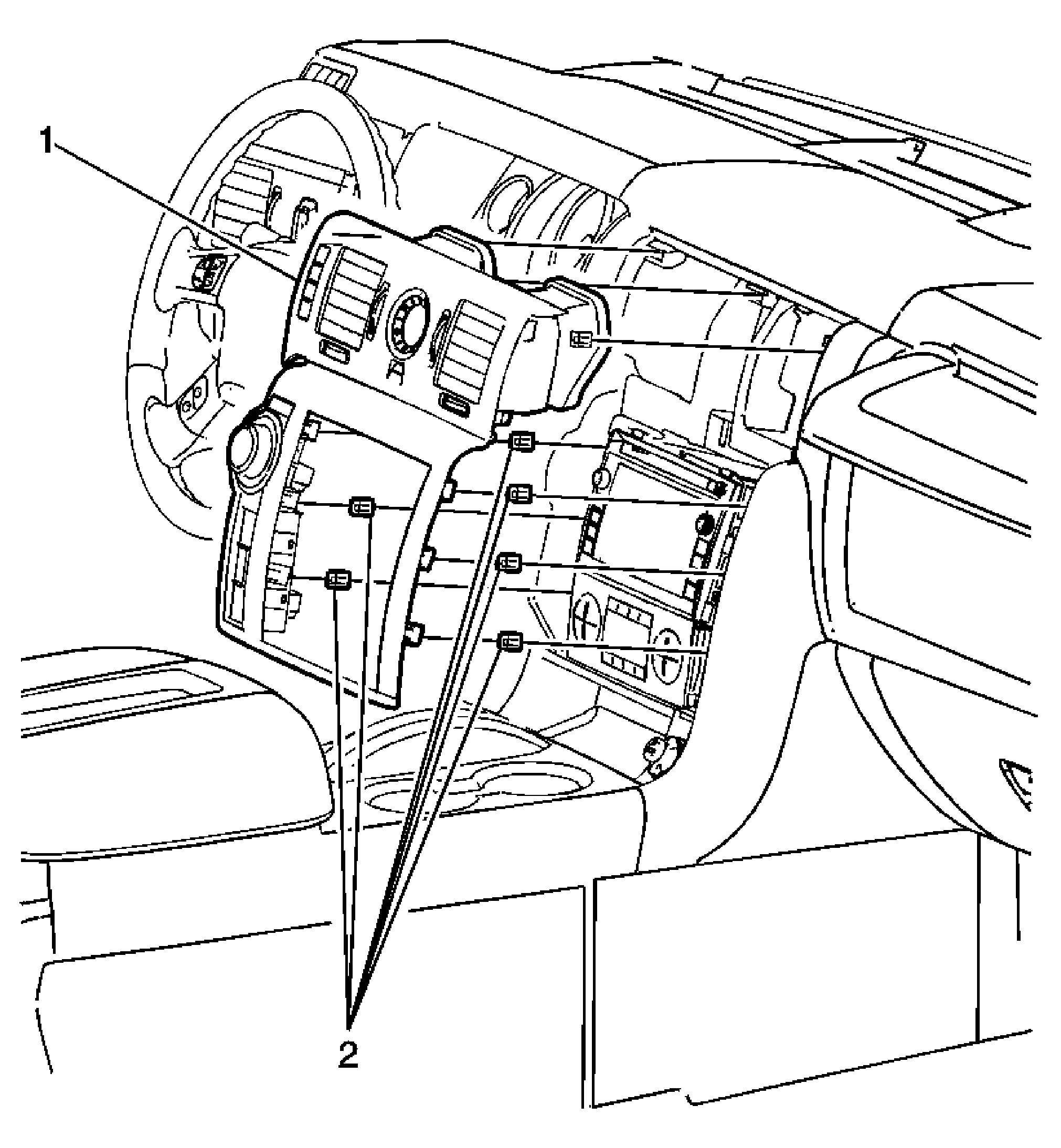

Fig 1: Instrument Panel Center Air Outlet Bezel
GM1912448Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Center Air Outlet Bezel Assembly

Preliminary Procedure

  1. Use a flat bladed plastic trim tool in order to release the trim bezel from the instrument panel assembly.
  2. Disconnect the electrical connections to the trim bezel.
  3. When replacing the instrument panel center air outlet bezel, transfer all necessary components.
2 Retainer Clips (Qty: 10)
