Preliminary Procedure
- Remove the carrier assembly. Refer to Instrument Panel Carrier Replacement .
- Remove the instrument panel air distributor assembly. Refer to Air Distributor Duct Replacement
.
- Prior to removal of the instrument panel carrier support assembly, note the location of the instrument panel electrical centers and junction blocks.
- Disconnect all instrument panel electrical centers and junction blocks from the instrument panel carrier support assembly and position out of the way.
- Prior to removal of the instrument panel carrier support assembly, note the routing of the instrument panel wiring harness and connector locations to ensure proper reinstallation.
- Disconnect the instrument panel wiring harness from the instrument panel carrier support assembly and position out of the way.
|

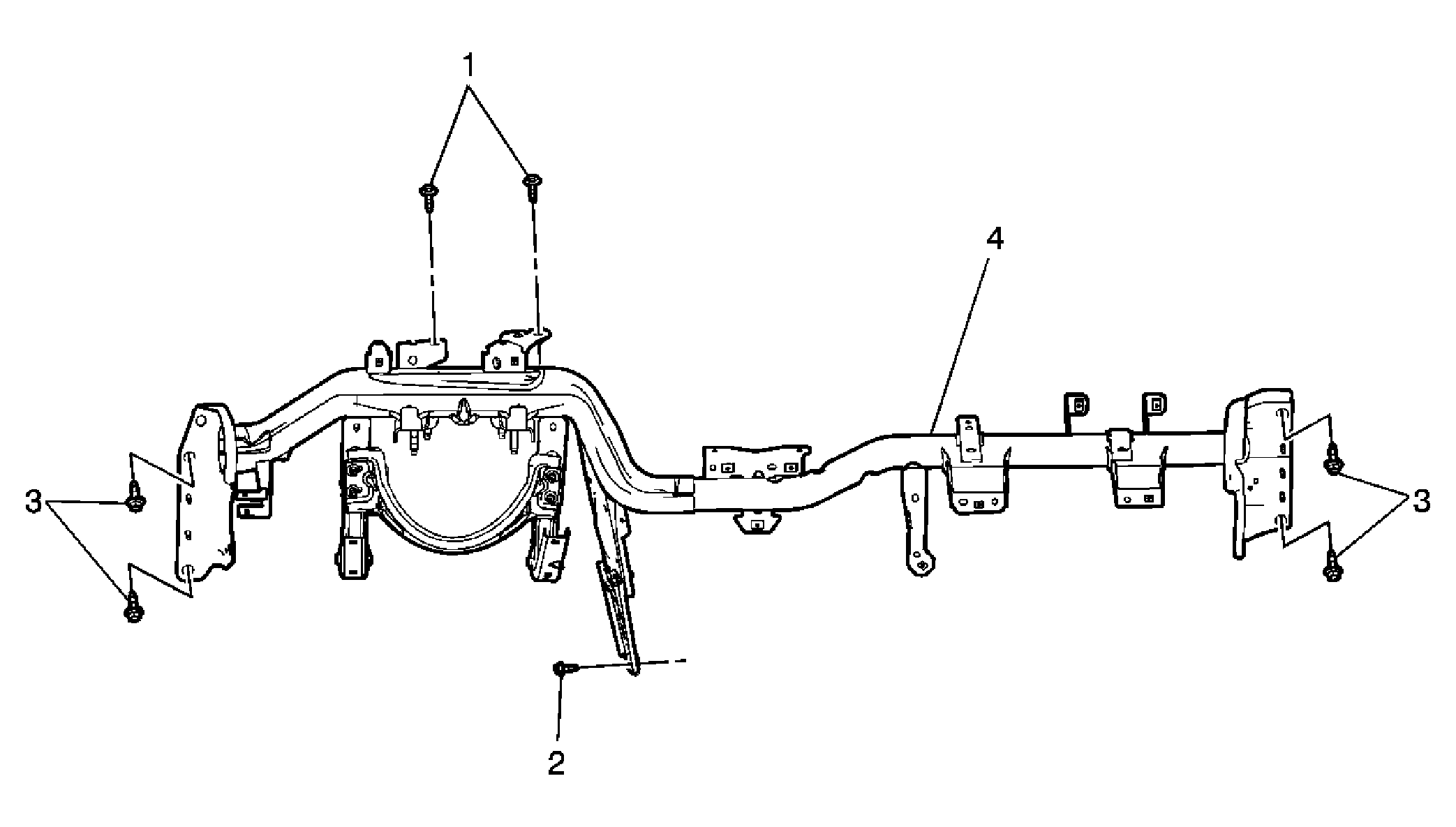

| 1 |
Instrument Panel Carrier Support Upper Bolt (Qty: 2)
Tighten:
22 N.m (16 lb ft)
|
| 2 |
Instrument Panel Carrier Support Lower Bolt (Qty: 2) Tighten:
22 N.m (16 lb ft)
|
| 3 |
Instrument Panel Carrier Support Outer Bolt (Qty: 4) Tighten:
58 N.m (43 lb ft)
|
| 4 |
Instrument Panel Carrier Support Assembly |
