Air Distributor Duct Replacement

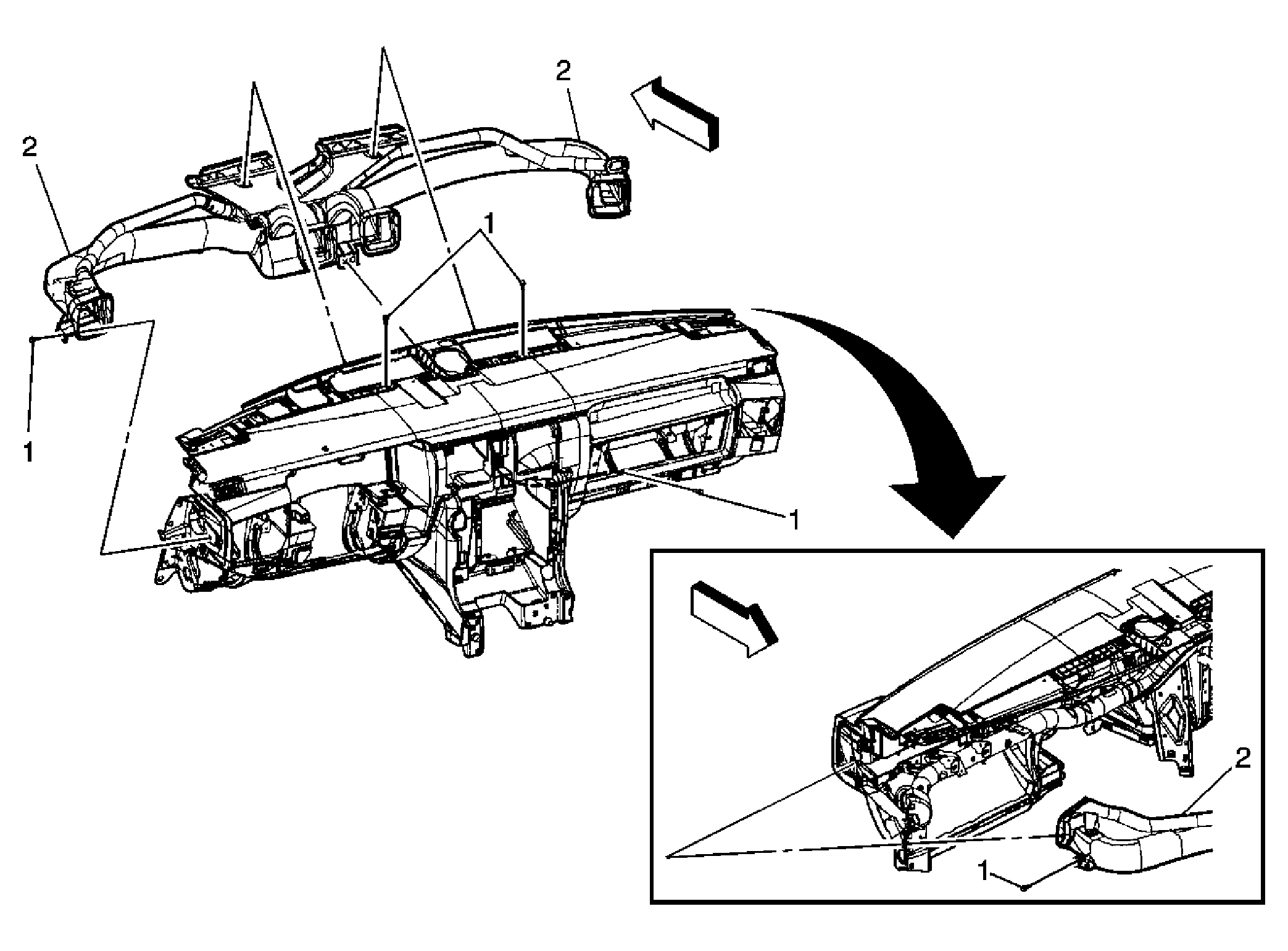

Fig 1: Air Distributor Duct Replacement
GM1971227Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove I/P carrier assembly. Refer to Instrument Panel Carrier Replacement .
1 I/P Air Outlet Distribution Duct Screw (5)
2 I/P Air Outlet Distribution Duct
