Front Floor Console Replacement

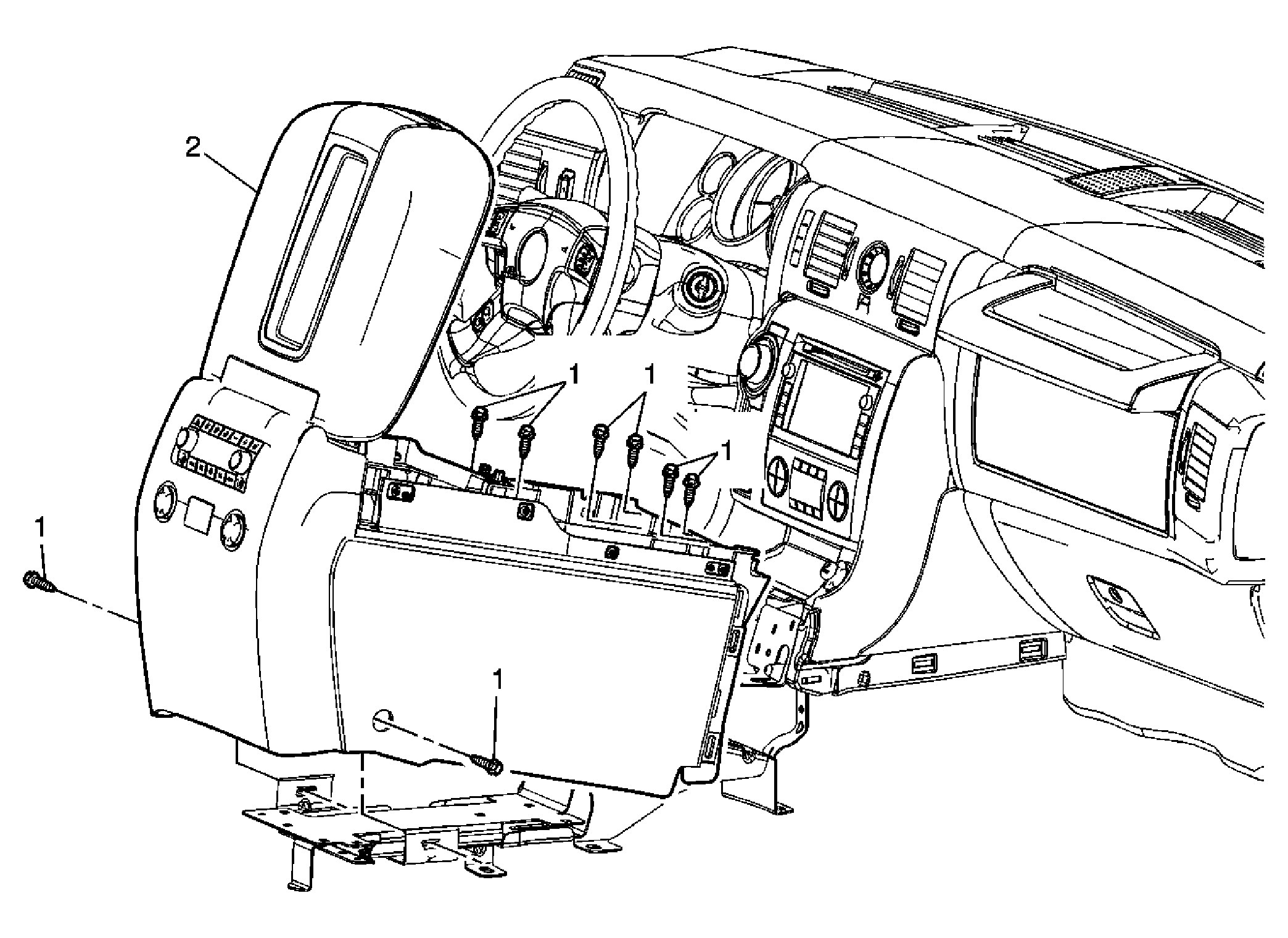

Fig 1: Front Floor Console

GM1912816

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the left instrument panel lower extension trim panel. Refer to Instrument Panel Lower Extension Trim Panel Replacement - Left Side .
Remove the right instrument panel lower extension trim panel. Refer to Instrument Panel Lower Extension Trim Panel Replacement - Right Side .
Remove the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement .

1

Front Floor Console Screw/Bolt (Qty: 8)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

2

Front Floor Console Assembly

Procedure

Disconnect the electrical connections.
When replacing the front floor console assembly, transfer all necessary components.
