Body Lock Pillar Garnish Lower Molding Replacement (SUT)

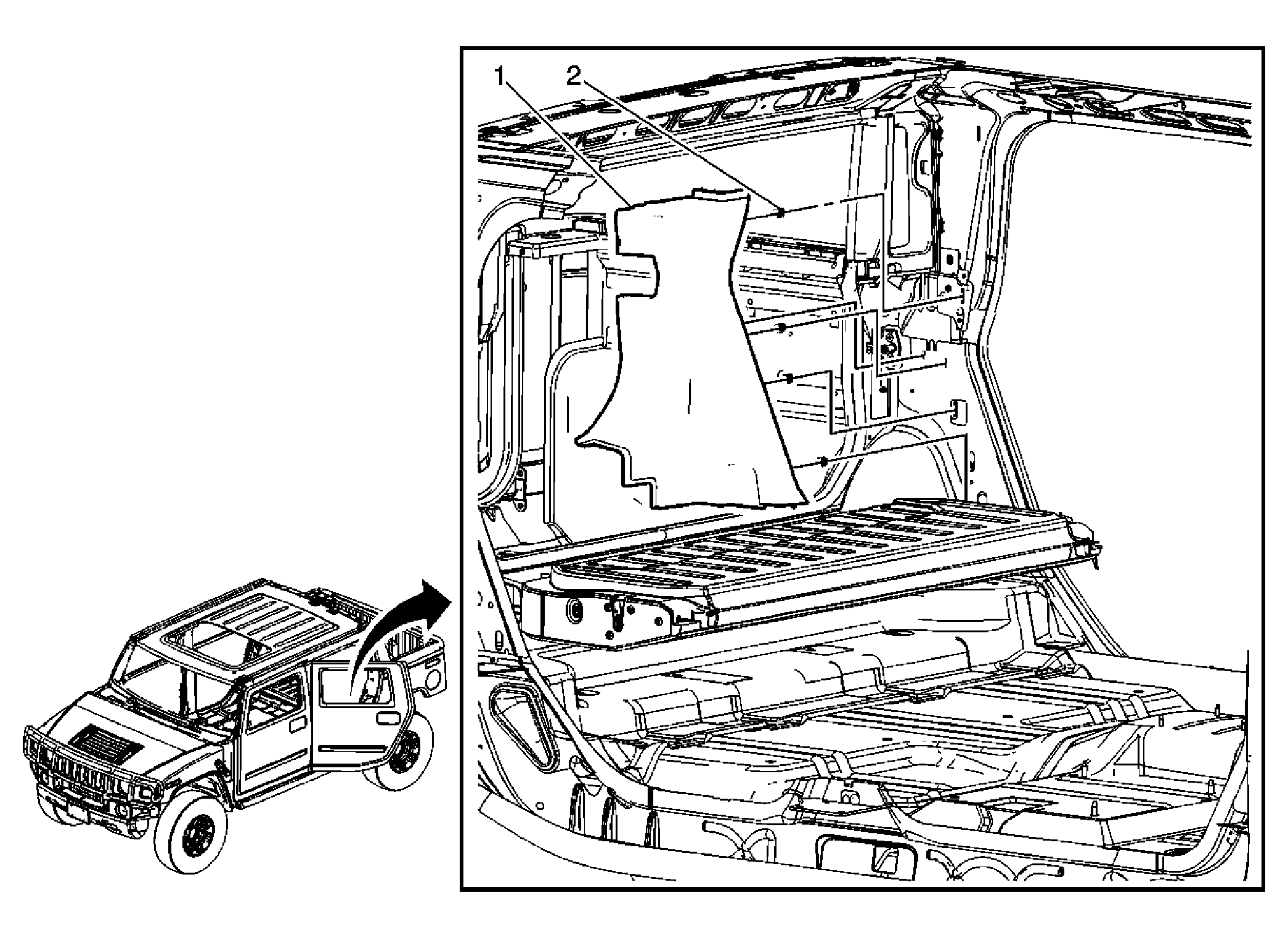

Fig 1: Body Lock Pillar Garnish Lower Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the body lock pillar upper garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement - Upper (SUV) or Body Lock Pillar Garnish Molding Replacement - Upper (SUT) . Remove the rear door sill trim plate. Refer to Rear Side Door Sill Plate Replacement . Fold the rear seat flat to the stowed position. Open the midgate and fold it flat to the stowed position.
1	Body Lock Pillar Garnish Lower Molding Assembly Procedure: Grasp the molding assembly and pull it outward disengaging the clips securing it to the body.
2	Retainer Clips (Qty: 5)

Callout

Component Name

Preliminary Procedure

Remove the body lock pillar upper garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement - Upper (SUV) or Body Lock Pillar Garnish Molding Replacement - Upper (SUT) .
Remove the rear door sill trim plate. Refer to Rear Side Door Sill Plate Replacement .
Fold the rear seat flat to the stowed position.
Open the midgate and fold it flat to the stowed position.

Body Lock Pillar Garnish Lower Molding Assembly
Procedure:
Grasp the molding assembly and pull it outward disengaging the clips securing it to the body.

Retainer Clips (Qty: 5)
