Body Lock Pillar Garnish Molding Replacement - Upper (SUT)

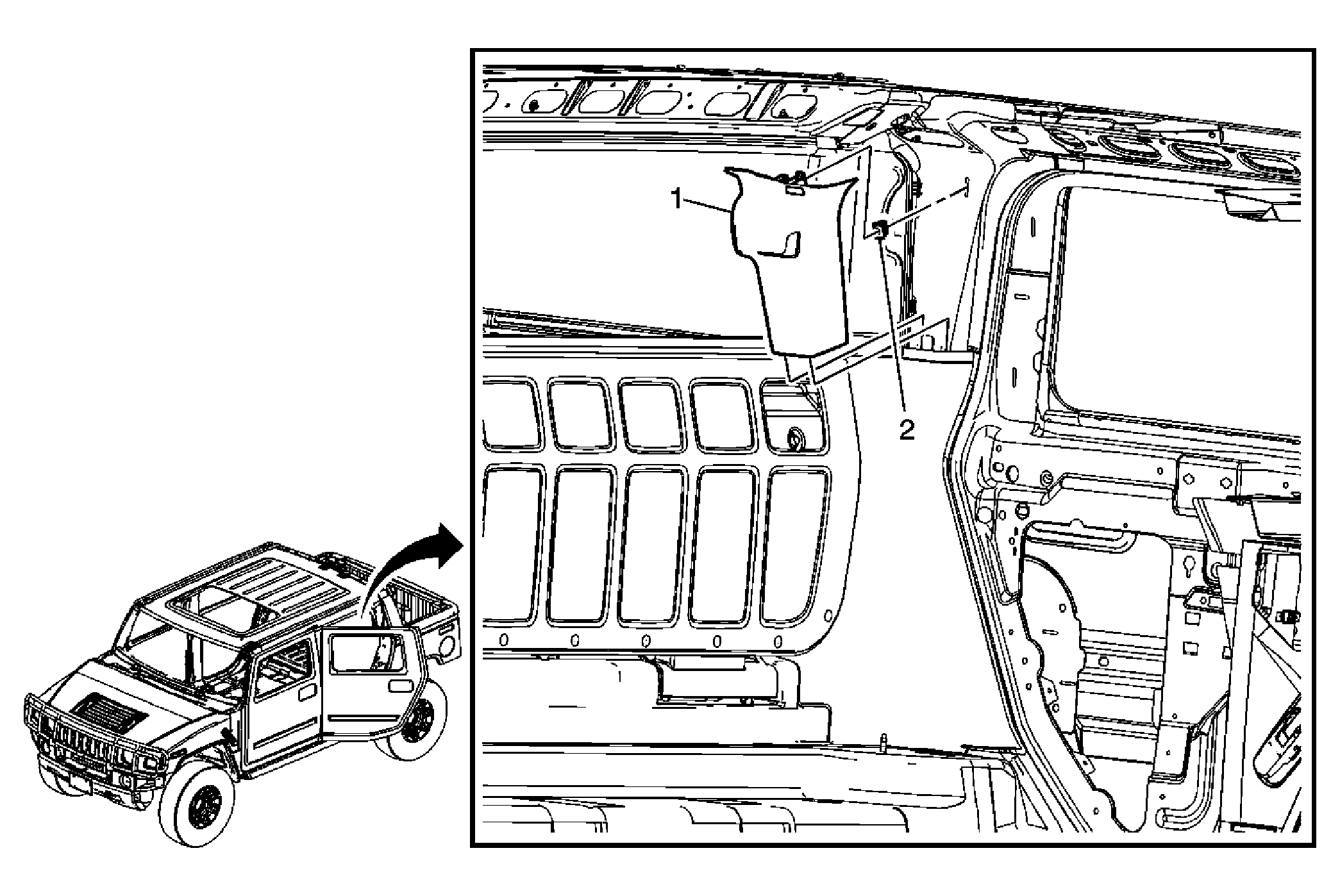

Fig 1: Body Lock Pillar Garnish Molding - Upper (SUT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat belt anchor bolt. Refer to Seat Belt Retractor Replacement - No. 1 Rear .
1	Body Lock Pillar Garnish Molding Assembly Procedure Grasp the molding and pull it outward disengaging the clips securing it to the body. Feed the seat belt through the opening in the trim panel. Lift the molding upward disengaging it from body side trim panel.
2	Retainer Clip (Qty: 4)

Callout

Component Name

Preliminary Procedure:
Remove the rear seat belt anchor bolt. Refer to Seat Belt Retractor Replacement - No. 1 Rear .

Body Lock Pillar Garnish Molding Assembly

Procedure

Grasp the molding and pull it outward disengaging the clips securing it to the body.
Feed the seat belt through the opening in the trim panel.
Lift the molding upward disengaging it from body side trim panel.

Retainer Clip (Qty: 4)
