Radio Front Floor Console Speaker Replacement

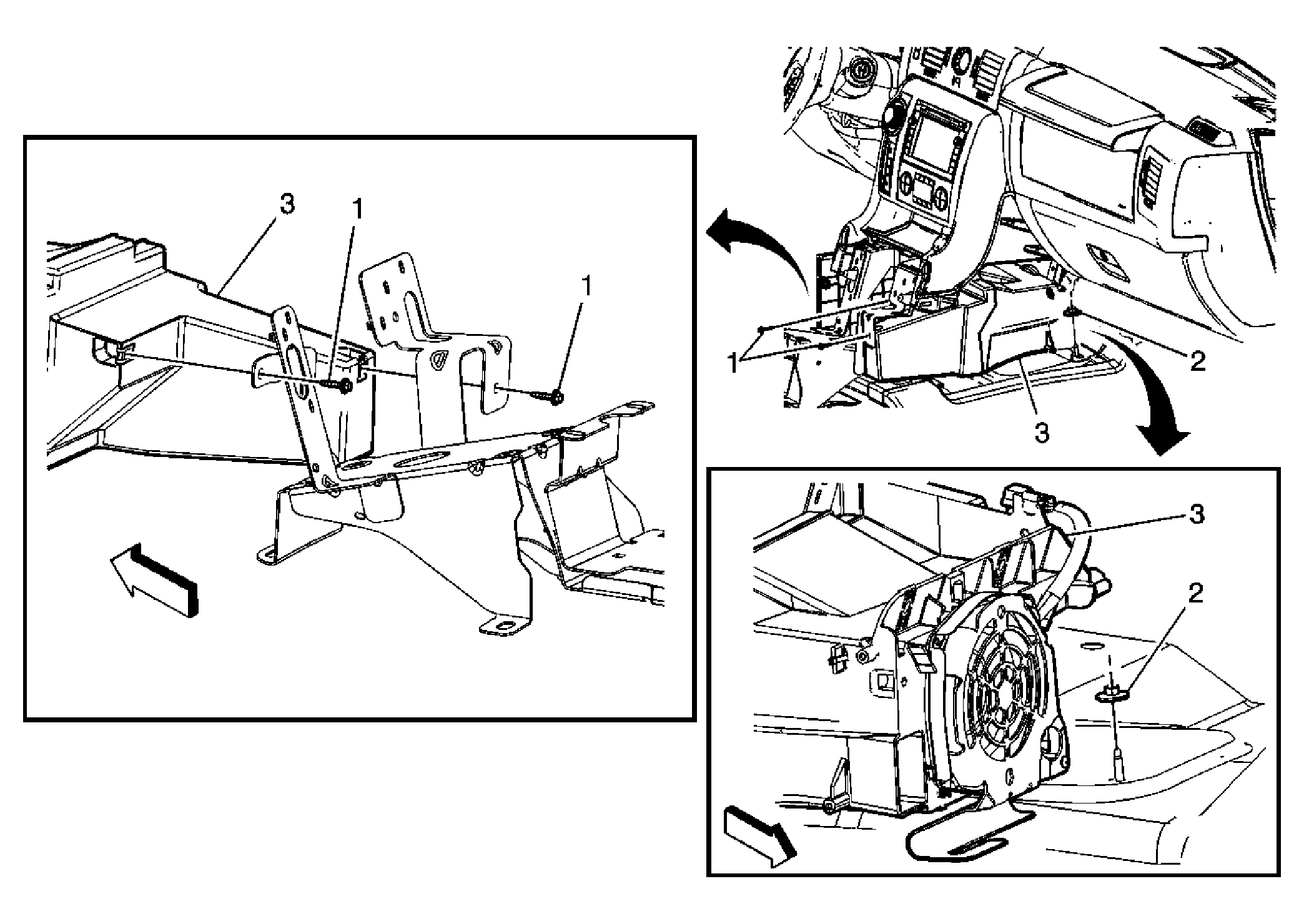

Fig 1: Radio Front Floor Console Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement . Remove the right instrument panel lower extension trim panel. Refer to Instrument Panel Lower Extension Trim Panel Replacement - Right Side . Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
1	Radio Front Floor Console Speaker Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Radio Front Floor Console Speaker Nut Tighten: 9 N.m (80 lb in)
3	Radio Front Floor Console Speaker Assembly Procedure Disconnect the electrical connection. Slide the speaker assembly out from the right hand side of the vehicle.
