Instrument Panel Lower Trim Panel Replacement

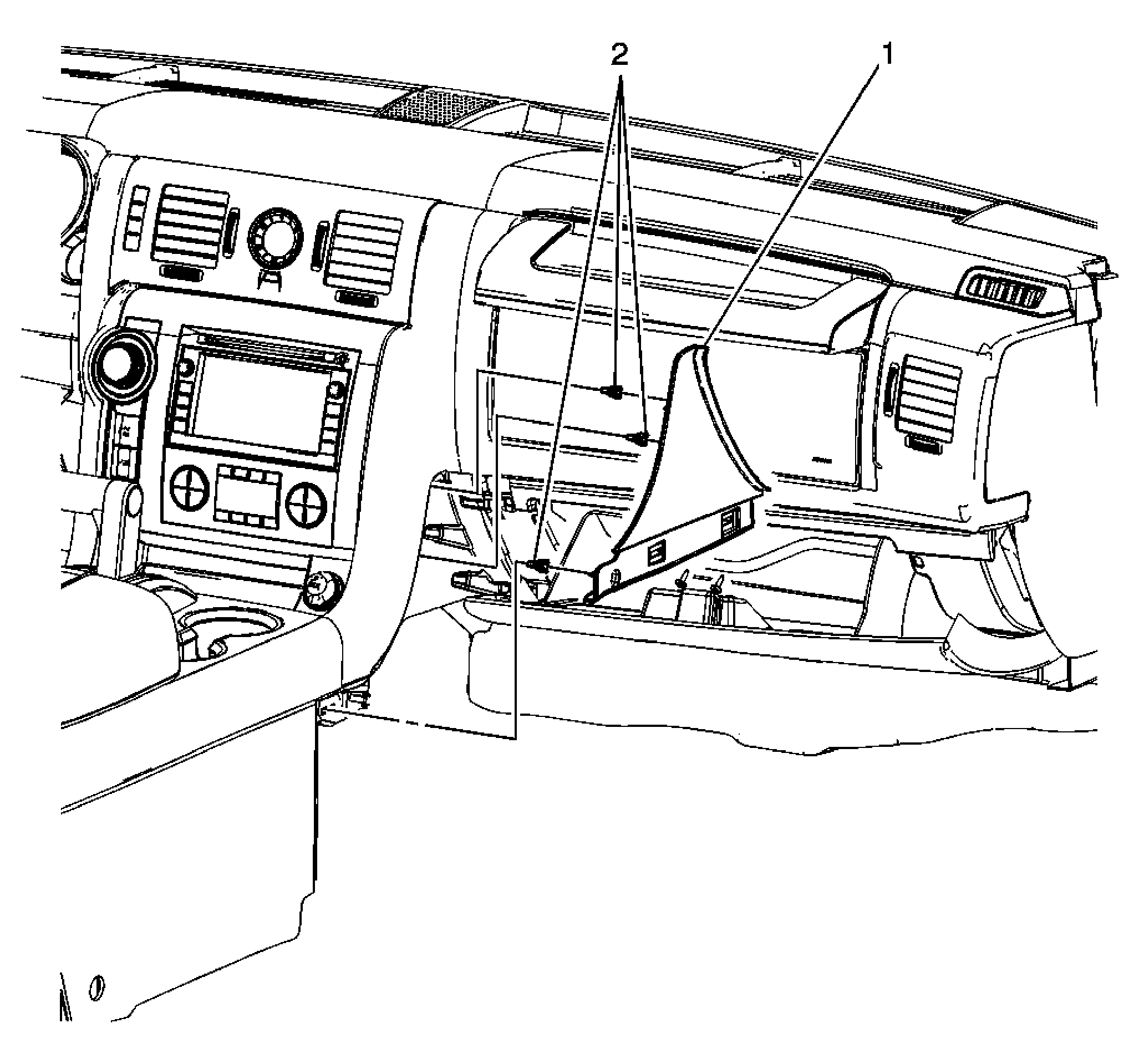

Fig 1: Instrument Panel Lower Trim Panel
GM1950228Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel lower extension trim panel. Refer to Instrument Panel Lower Extension Trim Panel Replacement - Right Side .
  2. Open the instrument panel compartment door.
  3. Remove the right instrument panel lower filler. Refer to Instrument Panel Lower Filler Replacement - Right Side .
1 Instrument Panel Lower Trim Panel
2 Retainer Clips (Qty: 3)
